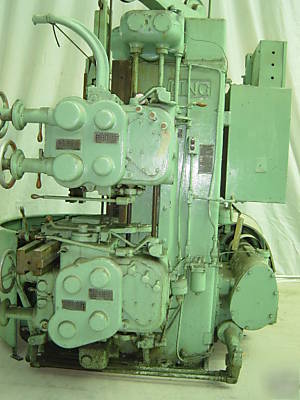

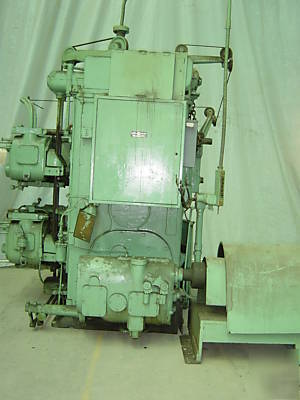

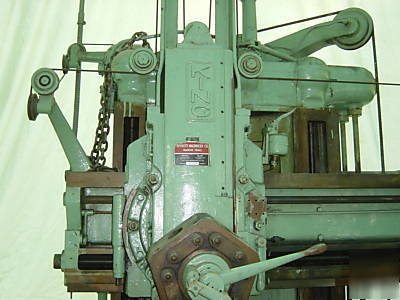

King 36" vertical turret lathe w/3 jaw chuck 41" swing

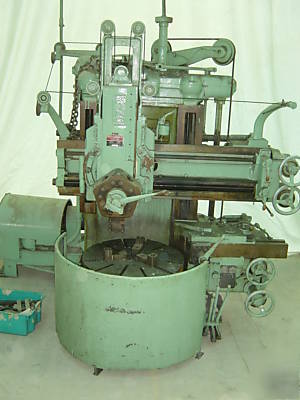

KING 36 INCH VERTICAL TURRET LATHE 41 INCH SWING

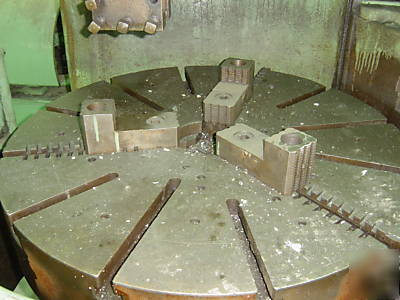

1. Diameter of table 36 three jaw chuck
4. With side tool head with 1 tooling head 20 travel
5. With turret head takes 2 round tooling

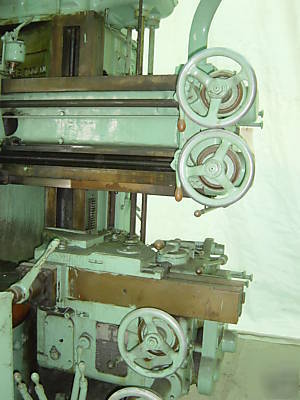

6. Travel of cross rail horizontal 27
7. Travel of cross rail vertical 16
8. Travel of turret head vertical 25
9. Turret head swivel (manual) +- 30 degrees
10. Floor style (no pit required)
11. Rpm s 5.11-206 with 32 steps

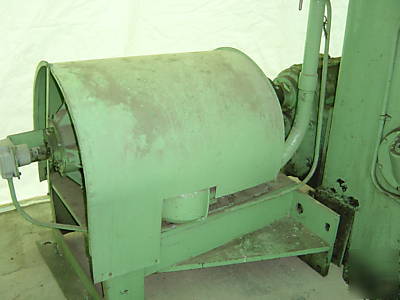

13. Main motor horse power 20

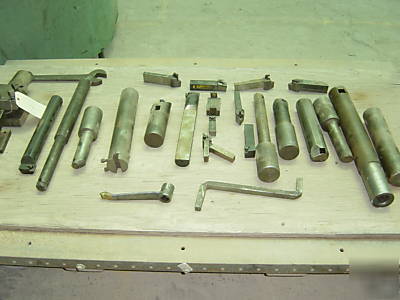

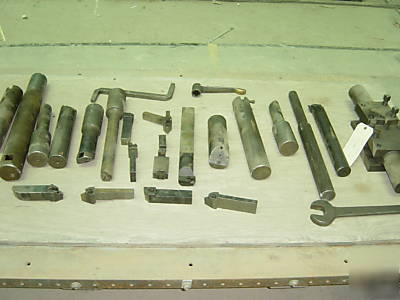

14. With tooling (Please see pictures)
15. Overall floor space Width 106 Depth 106 Height 11ft.
16. Table height from floor 35

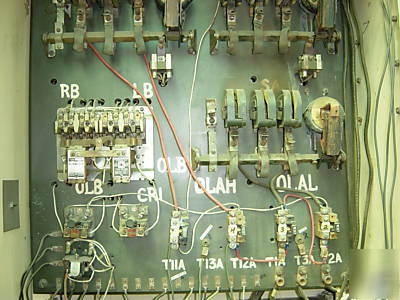

17. Electrical requirements 480 volts 3 phase 60 cycle
