1992 matsuura mam-600HF-pc-2 hmc- cnc

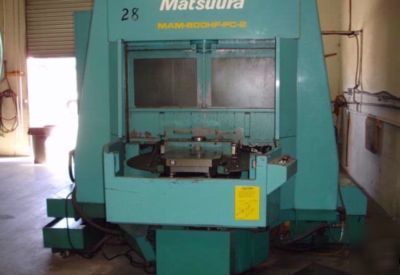

1992 Matsuura MAM-600HF-PC-2 HMC.
Includes Thru Spindle Coolant, Full 4th & 15k Spindle.
From Pallet Surface to Spindle Center 3.1"-25.5"
Pallet Center to Spindle Gauge Plane 3.9"-25.5"
Pallet Working Surface 15.7" x 15.7"
Pallet (Table) Loading Capacity 882 Lbs
Pallet Surface Configuration Tapped Holes
Min Table Indexing Angle 1 deg
Table Indexing Time 3 Sec/90 deg 3.7 Sec/180 deg
Spindle Speed Change Command S4 Digits Direct
Type Of Spindle Taper Hole 7/24 Taper # 40
Spindle Bearing Inner Diameter 3.14"
Spindle Orientation Standard/Electrical
Rapid Traverse Rate (X/Y/Z) 944.8"/Min
Min Movement Increment (X/Y/Z) 0.001
Type of Tool Shank JIS B 6339 Tool Shank 40T
Type of Retention Knob JIS B 6339 Pullstud 40P
Tool Storage Capacity 60 (Incl Provision of 180
Ditto (Optional Specifications) 90,120,150,180,210,240
When the Pockets on Both Sides are Empty 5.9"
Method of Tool Selection Address Code and Random
Tool Changing Time (Tool to Tool) 2.4 sec
Tool Changing Time (Chip to Chip) 6.0sec 20% of Z Axis Stroke
Method of Pallet Change Turn Table Methods
Weight of Pallet/PC 185.22 Lbs
15,000 RPM Spindle with Air Dryer
Through Spindle High Pressure Coolant
PLEASE NOTE: We have 2 machines available. Price per machine. Contact for more details.
For any questions, please contact Tom Cardone at ****@kdcapital.com or call (***)-212-0775.
