Voorwood l-177 shape, sand, sand, foil, 1991, 440V 3PH

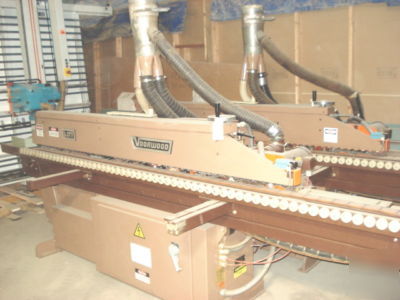

Voorwood L177 Shaper, Sander, Foiler
Good condition, cleaned, checked by our personnel.
5 Station machine with infeed table feeding from right to left.
Station 1: top and bottom scoring saws with 3/4HP motors
Station 2: High speed shaper with 0 to 55 degree tilt mechanism, 1 1/4" spindle dia. 5HP motor drives spindle at 5000 RPM
Station 3: Independently adjustable counter rotating Turbosand disc sander with tilting mechanism -5 to +45 degrees 1HP motor drives sanding head at 1500RPM Serrated strips on wheels are die-formed and dissipate heat and minimize dust build-up.
Station 4: Independently adjustable counter rotating Turbosand disc sander with tilting mechanism -5 to +45 degrees 1HP motor drives sanding head at 1500RPM Serrated strips on wheels are die-formed and dissipate heat and minimize dust build-up.
Station 5: 2" width double foiling applicator heads, tiltable -15 to 50 degrees from horizontal. Applicator rollers have individual temperature controls. Carrier film rewind system with automatic tension control on outfeed, 2" max. foil roll width
Part size capacities: 2 3/4" x 2 3/4" plus profile face width, part thickness from 1/8" to 1 1/2", maximum profile face 1 3/4"
2 HP feed drive for variable feed speeds up to 35 FPM.
Part is fed via bottom feed chain and tightly spaced upper holddown rollers.
Control panel with lighted individual power controls for each station, temperature monitor, rewind torque control, main power disconnect
