New miyano mod tsv-C37 cnc drill and tap machine- 2000

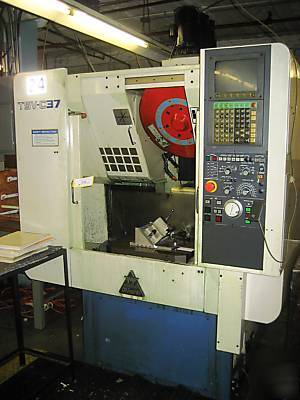

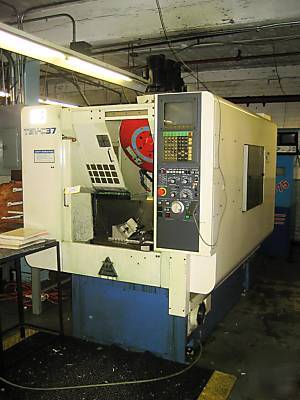

Miyano Model TSV-C37 CNC Drilling and Tapping Machine - NEW June 2000
referencing Miyano Model TSV-C37 CNC Drilling and Tapping machine - NEW JUNE 2000
Miyano Model TSV-C37 CNC Drilling and Tapping machine Original Cost $85,471. June 2000 - ONE OWNER!
Technical Specifications: * 12 Station Turret
* Ridgid Tapping Capability
* Table Max. Load Capacity: 100kg (220lbs)
* Indexing Time of Table: 2.5 sec
* 524 FT Programming Memory
* Travels; X Axis: 15.7 / Y Axis: 11.8 / Z Axis: 9.8
* 3 Axis Simultaneous Control
* Height of Spindle Nose from Table: 250-500mm (9.8 -19.7 )
* Spindle Speed: 80-8,000 RPM
* #NT30 Spindle for BT30 Tooling
* Max. Speed Solid Tapping: 4,000 RPM
* Spindle Motor VAC: 3.7/6.6 kW/ 4.9/ 8.8HP
* Rapid/Cutting Rate: 30m/min (1.181 IPM)
* Shank of Tool Holders: MAS BT30
* Max. Tool Diameter x Tool Length: 3.15 DIA x 7.874 )
Max. Tool Weight: 5.5 lbs * Machine Weight: 6,600 lbs.
EQUIPPED WITH: * Yasnac i80M3 CNC Control
* Operation and Technical Manuals
* Built-In Rotary Work Table
* Fully Enclosed Splash Guard / Coolant
Contact David Gold at 401.724.3200 Ext 111 during normal business hours (EST) or Cell# (***)-864-4446 or Email ****@goldmachinery.com referencing Miyano TSV-37 CNC Drill and Tap Mach..
