Hp/agilent 87302C hybrid power divider 0.5GHZ - 26.5GHZ

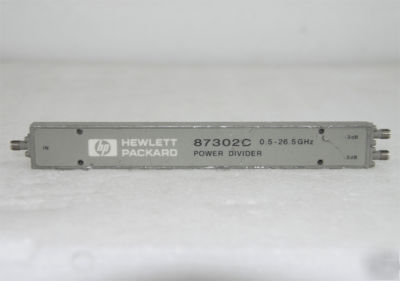

HP/Agilent 87302C Hybrid Power Divider, 0.5 GHz to 26.5 GHz
* Maximum SWR: 1.45 0.5 GHz to 18 GHz, 1.60 18 GHz to 26.5 GHz
* Insertion loss: 1.5 dB 0.5 GHz to 18 GHz, 1.9 dB 18 GHz to 26.5 GHz (insertion loss is in addition to 3 dB coupling loss)
* Maximum amplitude tracking: 0.3 dB 0.5 GHz to 18 GHz, 0.5 dB 18 GHz to 26.5 GHz
* Maximum phase tracking: 6 deg 0.5 GHz to 18 GHz, 10 deg 18 GHz to 26.5 GHz
