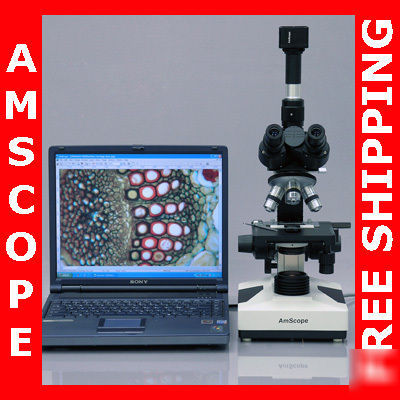

> 40X-2000X trinocular biological microscope + 3M camera
40X-2000X trinocular biological microscope + 3M camera
Brand Name: AmScope Model No: T490B-3M Retail Value: $2,300
* Simultaneous Viewing Through the Photo Port and Eyepieces
* Adjustable Parfocal Trinocular Port
* Industry Standard 23mm Photo Port and C-mount Port
* 3M High Quality Color USB2.0 Digital Camera
* Both Captures Microscope Images and Streams Live Video on Your PC Screen
* Displays 2048X1536 Pixel Real-time Clear Images with High Resolution
* User-friendly Software Compatible with Windows 2000/XP/Vista/7
* Life-time Free Software Upgrading
* Built-in Reduction Lens Provides the Same Field of View on Screen as through Eyepieces
* 30 Inclined 360 Swiveling Compensation Free Trinocular Head
* Photo/Video Capability with Adjustable 23mm Photo Mount for Parfocal Image System
* Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
* Low-Position Coaxial Stage Movement Control Knobs
* Coaxial Coarse & Fine Focusing with CA Knob Tension Control
* Fully Coated Optical System with High Resolution
* Crystal Clear Sharp Images
* High Quality Professional Grade Microscope
* Perfect for Clinics, Vets, Doctors, and Students
* Eight Levels of Magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
* Upward Stage Stopper to Protect Slides and Objectives
* Abbe Condenser with Iris Diaphragm & Filters
* Rack and Pinion Adjustment for Condenser
* Built-in Halogen Illumination System with Variable Intensity
* Dual Focusing Control Knobs
* Four DIN Achromatic Objectives
* All Metal Mechanical Components.
* Adjustable Diopter on Ocular
* Solid Metal Frame Construction with Stain Resistant Enamel Finish
* Manufactured under ISO 9001 Quality Control Standards
* Excellent Five (5) Year Factory Warranty
* Satisfaction Guaranteed or Money Back!
* Mechanical Tube Length: 6-5/16" (160mm)
* Head: 360 swiveling compensation free trinocular head inclined at 30
* Eyepieces: WF10X and WF20X
* Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
* Stage Dimensions: 5-1/2"x 5-1/2" (140x140mm)
* Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)
* Focusing Range: 1-3/16" (30mm)
* Division of Fine Focusing: 0.0000787" (0.002mm)
* Abbe Condenser: NA=1.25 with rack and pinion focusing control
* Illumination: 6V/20W halogen bulb
* Power Supply: 110V (220V version available), CE certified
* Accessories: 6V/20W spare halogen bulb, immersion oil, blue, green & yellow filters
* Microscope Dimensions: 12" x 9" x 16"
* One Trinocular Compensation-Free Head with 23mm Adjustable Photo Port
* One Microscope Body with Frame, Base and Halogen Illumination System
* Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
* Two Pairs of Widefield Eyepieces, WF10X and WF20X
* Color Filters, Spare Bulb, Dust Cover, Power Cord, Spare Fuse, Immersion Oil and User's Manual for the Microscope Included
* One 3.0MP Digital Camera with One USB Cable, Two Adapters and One CD with Software and User's Instructions
* Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards with Certificate No: 3302/200213192. This item comes with a 5-year warranty.
