3M-matic 77R random box sealer/ wal-fab last days value
Limited Warranty: 60 days on all new consumable parts, belts, blades, springs, rubber parts to be free from defects. nothing more implied or stated !
This rebuilt 3M Random sealer is a fantastic value and in Great working condition ! Small & compact, yet can seal hundreds of intermittent size boxes per day !
There is no body damage or rust, a solid unit.

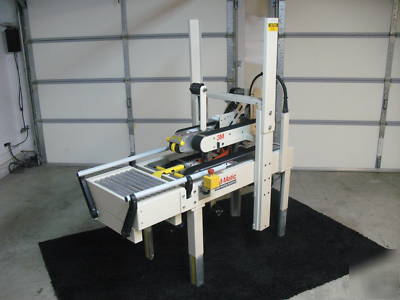

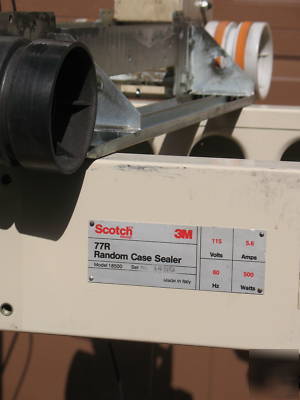

3M-Matic 77R Random Box Sealer Type 18500, serial number 1450
Note: 3M stocks all 77r parts @ 3M Central Parts (***)-344-9883
WAL-Fab Inc. is a 3M-Matic factory "Certified" service provider. We take pride in all our rebuilt and modified 3M-Matics.
See our website about our history and additional packaging solutions, go to
Rebuilt with New Genuine 3M parts. Just uncrate, hook up air, plug in, install tape and start sealing !!!!!!
Replacement 3M Coel motors, original on these models.
All new wiring and power cord
All new consumable parts (belts, labels, regulator, conveyor rollers, switches)
Total body metal and surface reconditioning and bearing service or replacement.
Every item checked, serviced, or replaced by a certified 3M technician.
2 BRAND NEW AccuGlide Tape heads (Top and Bottom) Right out of the box new.

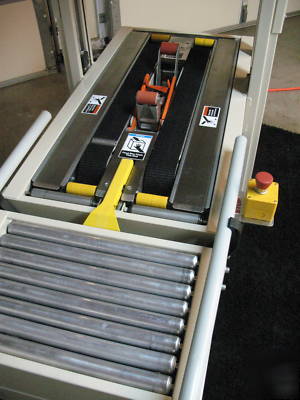

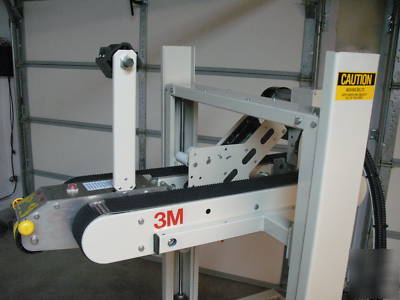

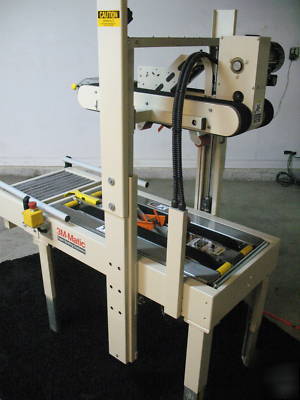

Description of operation: The 77R is a random ,dual mast, 4 drive belt top and bottom box sealer for RSC regular center slotted boxes. It take intermittent box sizes and uses air and electric to automatically adjust to the box size and then to tape seal the top and bottom of the box at the same time.
Pneumatic/Air 70 PSIG @ 2.5 scfm (If you do not have air, a portable compressor 15/20 gal tank with 5 to 7 cfm at 80 psi will do fine.)
3. Conveyor Bed Height 24.6 to 31 adjustable
4. Operating Rate: Up to 12 boxes per minute depending on box length , width
and height. Higher rates are possible for same size boxes.
5. Tape roll size: standard box sealing film tape 2 48mm by 1000 yds 914m
6. Box Sealer Weight 360 lbs uncrated 420 lbs crated Crate dimensions 60" x 43" x 52"
Review Manual for operation tips and safety overview !
