White-rodgers 3L11-190 bimetal disc thermostat 1/2"

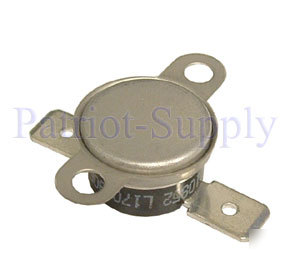

WHITE-RODGERS 3L11-190 BIMETAL DISC THERMOSTAT
Open On Rise, Range 185*F To 195*F,
85*C To 91*C, Differential 30*F, 17*C
Loose ring, stainless steel mounting brackets.
1/4 quick connect terminations.
Single pole, single throw Available in either open or close on temperature rise
Resistive . . . . . .. . 15A @ 120VAC, 10A @ 240VAC
Inductive . . . . . .. . 3.0FLA, 12.0LRA @ 120VAC; 1.5FLA, 6.0LRA @ 240 VAC
Pilot Duty . . ... . . . 125VA
Dimensions . . . . . . Length (1.23
), case width (1.32 ), height (.37 )
Weight . . . . . . . . . 0.2 oz.
Agency . . . . . . . . . UL Recognized File #E19279
