Watts intelliflow automatic washing machine valve

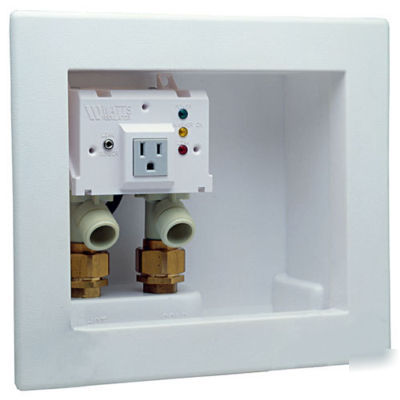

NEW Watts 1/2 A2C-WB-M1 Intelliflow Automatic Washing Machine Valve with wall box and Leak Sensor.
The Intelliflow's automatic operation protects against catastrophic water damage, should a water inlet hose burst while the machine is not in use and unattended.
Replaceable internal strainer screen
The Intelliflow A2C-WB-M1 also includes a leak sensor. The water sensor is placed on the floor behind the washing machine.
Upon detection of water at the sensor, the IntelliFlow automatically shuts off the water supply to the washing machine.
This provides an additional level of security, should a hose burst while the washing machine is in operation.
Maximum Pressure: 150psi (10 bar)
115 VAC, 15A, 60Hz Cord: 5 ft.
Current draw (with appliance off): 20mA Maximum appliance current rating:
15A Circuit breaker requirement: 15 amp. GFI
Note: It is suggested that the electrical power source be ground fault protected.
