Stepper motor wire by the foot -2 individ shielded cnc

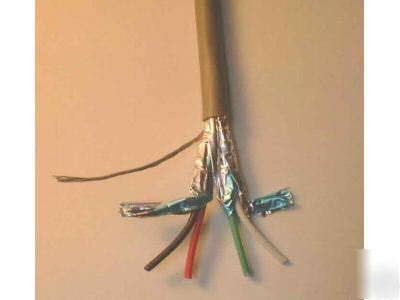

This cable is well suited for driving bipolar stepper motors or small servos at high speed, or for use with encoders. The wire is 22 AWG. Wire consists of four conductors, arranged in 2 twisted pairs. These pairs are individually foil shielded! A drain wire is present to properly ground the shield foil wraps. Conductors are tinned stranded copper.
Rated up to 300V, 60deg C. Overall cable is 0.168" diameter, very light and flexible. Pairs are only lightly twisted resulting in low inductance and low impedance.
Works great for Encoder cable also!
Keywords; Step, Stepping, Stepper, pacsci, pacific scientific, motor, motors, cnc, xyz, axis, CNC, robotics, NEMA, wire, encoders, encoder, servo wire
