Robot MV16P multivision monochrome duplex multiplexer

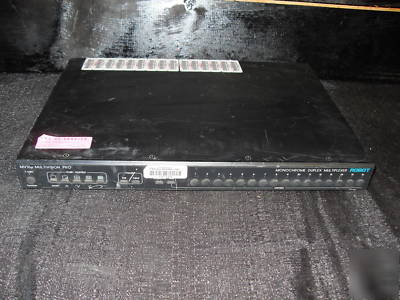

1 Robot Multivision Pro 16-Port/Channel Monochrome Duplex Video Multiplexer! The item was pulled from a working environment and does have storage wear and we do not have a power cord for it, but it still works fine. We guarantee it to work or your money back! See our friendly return policy!
Integrated video alarm detection and internal RS-232 remote control port reduces equipment costs
Set alarm parameters such as target placement, object size and shape, time of day, trigger sensitivity and alarm delay
Set parameters for each camera using 16H x 12V detection grid
vSync for fast installation with VCRs that have a switch pulse output
Individual video alarm outputs for each camera allow customized alarm response for specific security areas
Enhanced performance with high resolution cameras
Dynamic Time Division records more frames from cameras that see motion
High quality, 730 x 464 digital pixel images to VCR
The Multivision Pro MV16p integrates duplex video multiplexing and video motion alarm detection with advanced features like faster recording output, VCR Record Speed Auto-Detection and enhanced picture processing for unparalleled image quality and superior performance with high-resolution cameras. Record up to 16 live cameras on one VCR, while simultaneously processing and replaying video from a second VCR. Live and playback images can be displayed in a variety of multiple-picture screen formats while recording. Program video alarm detection parameters for object size and shape, target placement, trigger sensitivity and tracking delay. And each camera has an individual video alarm output so that you can do more than just record. The high-performance Multivision Pro MV16p . . . better pictures, improved recording and built-in alarm detection.
This easy-to-use, high-performance duplex multiplexer gives unparalleled image quality and superior performance for up to 16 cameras. Duplex performance allows you to display live images in your choice of multiple screen formats while recording full-field pictures from all cameras. Select any camera or group of cameras for playback. And view it all with razor-sharp high resolution. The MV16p provides you with unrivaled capabilities, including vMax
enhanced performance with high resolution cameras.
Plus, integrated video motion alarm detectors eliminate the need for high-cost, stand-alone video motion detectors or other types of alarm sensors. The MV16p uses Dynamic Time Division to see motion and then records and displays those cameras more often. Based on detection options you optimize, the MV16p will automatically trip the alarm and prioritize recording to the alarmed area. Set alarm object size, shape, tracking and trigger sensitivity in just seconds using one on-screen menu. And individual alarm outputs for each channel let you add mechanical alarms to enhance alarm response at the camera location.
With the MV16p, installation and security management has never been easier. During installation, it automatically chooses the optimal camera switch rate based on your VCR settings. Intuitive, on-screen menus and push-button controls make installation and operation a breeze. Remote panel accessories let you conveniently control remote multiplexers and alarm response from one master location.
The MV16p . . . sophisticated and cost-effective duplex multiplexer performance, from the video product experts.
Integrated Alarm Detection and Reporting
Video motion detection responds to alarmrelated motion. Users gain alarm protection and superior documentation of critical events. Alarm-type video motion detection is built-in to the MV16p at a cost lower than comparable stand-alone detectors. Alarm reports, logs and counts conveniently displayed on-screen. Operation is easy, seamless and integrated.
User-Optimized Alarm Detection Per Camera
Alarm detection parameters include object location, size, shape, tracking delay and trigger sensitivity to suit each camera s unique viewing environment and security need. Programmable 16H x 12V detection grid allows for superior alarm sensing while preventing false alarms.
Automatic Day/Night Setting Per Camera
Each camera s detection setting can be set for day and night conditions. The MV16p will automatically change settings when time of day requires alarm sensing requirements to change.
High-Resolution Monochrome Display
730 x 464 pixels to VCR. 256 shades of gray. See live or recorded events in high resolution for superior surveillance and easier identification.
Multiple Camera Display and Playback Options
Full screen, sequential camera switching, PIP, 2 x 2, 3 x 3 or 4 x 4 picture formats. Take a closer look at suspicious activity. View only critical areas. See all locations at one time. The MV16p allows you to select from viewing and playback options to suit your needs on a minute-to-minute basis.
View and record functions are independent. All cameras are full-field recorded regardless of picture format option selected when pictures were recorded. Playback any camera full screen or select any display option to see the group of cameras you desire.
Conduct closer analysis of critical events and provide improved documentation. Zoom into see otherwise unidentifiable distant objects, such as license plates.
On-Screen Alarm Reporting, Logging and Count
Alarm management has never been easier. All alarm data is displayed and managed on one easy-to-use, on-screen menu.
EIA: 525 lines, 60 fields/second
CCIR: 625 lines, 50 fields/second
16 looping: 1.0 V p-p composite, individually
selectable 75 ohms or High-Z, BNC
2: 1.0 V p-p composite, 75 ohms, BNC
1.0 V p-p composite, 75 ohms, BNC
512 x 464 to Display, pixels full screen
730 x 464 to VCR, pixels full screen
8-bit Luma, 256 shades of gray
16: programmable as Normally Open or
+5 to +15 VDC or TTLActive High
1: Normally Open or Closed contacts,
2A @ 30 VDC or 1A @ 125 VAC, resistive
16: Active High or Low TTL compatible
DB37S (includes DB37P mating connector)
Programmable 2 to 999 seconds,
Each video channel has independent settings for
Target Matrix: 16 horizontal x 12 vertical
Object Size: 81 combinations of width and height
Tracking Delay: 0 to 5 seconds
Alarm Enable: On, Off or And (requires
Controls up to 16 multiplexers via RS-232,
12 VDC; 18 watts, 2.1mm Pin Jack
1.75 in. H x 17 in. W x 12.25 in. D
