New welding positioner wp-2SC cnc 8" chuck 2" hole usa
ALMOST TOO GOOD TO WELD ON, TRULY A FIRST CLASS MACHINE.
LAST ONE IN STOCK!!!!!!!!!!!!!!!!!!!!!!!
This is our most popular chuck positioner, with all the features, infinate angular adjustment 0-90.
with real people to contact for answers to questions. No sure what you want? Call us we can help. 1 (***) 628 8831 call for unlisted specials
We are Midwestern Wisconsin welding folks, building honest good products for the American market, we use our products in our shop everyday.
This positioner is different in many good ways, here are some of our HUGE differences.
1. Tubular construction, this aligns the machined secondary gearing for long service.
2. Total 360 degree enclosure of the precision secondary gearing, this keeps weld spatter and fingers out of the pinch points.
3. Twin bearings, not one but TWO precision SEALED ball bearings, that distribute the load and still deliver smooth rotation.
4. We use our own "Constant Current Contact", for the ground connection. This spring loaded brass ground, follows the back side of the table, keeping the welding current out of the precision bearings.
5. Precision machined steel secondary gearing, no exposed belts or chains.

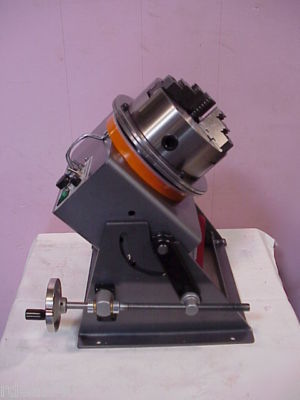

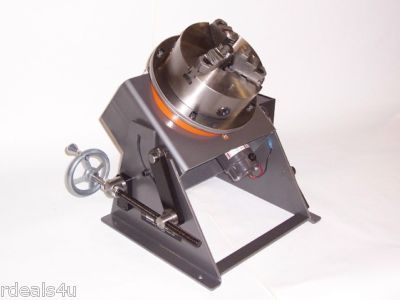

WP-2 Welding Positioner Hollow Spindle, Chuck Option:
Required power..................115 VOLT AC POWER
Weight capacity.................200# balanced/centered vertical
50# balanced at 90 degrees, 2 from C/L

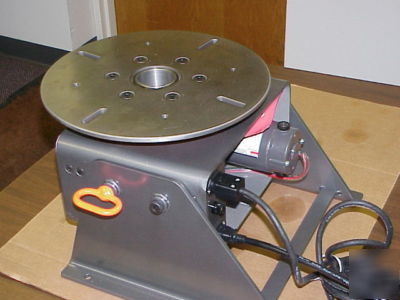

Table...........................10 diameter with 3/8" slots, 5/16" thick, steel
Table tilt......................0-90 degree Trunnion pivot w/screw adjustment
Motor...........................90 volt PM DC motor
Control.........................SCR High Frequency tolerant control
Power on light, fused
Forward/Reverse toggle on Control
Speed ranges offered............Model #WP-2, 0-4 RPM 102 lbs. inch torque
Ground current..................200 Amps DC direct table contact
Click here for WP Series Price List
Building of quality welding equipment since 1986
