Molex fastjunction modular splice & tap kit for romex

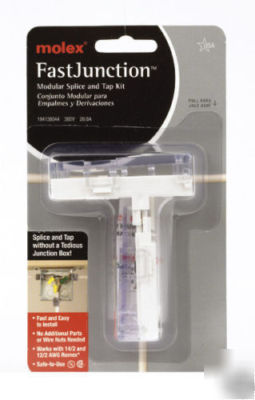

MOLEX" FASTJUNCTION MODULAR SPLICE & TAP KIT
Great for Homeowners and contractors Quick fast easy and safe way for installing Ceiling fans, outlets or any other home electrical applications where tapping into Romex cable is needed.
* Individual unit size: 1.55"D x 2.50"W x 3.50"H
* Use with Romex 14/2 and 12/2 AWG with ground cable
* Self contained tap kit that eliminates the need for junction boxes and cutting wires
* High impact, clear cover is durable and allows complete inspection
* Double piercing terminals provide maximum conductivity and minimum voltage drop
1) Strip the outer Romex sheathing from both cables and spread wires apart.
2) Place the wires into the locator channels on the clear cover.
3) Press the housing hinge posts into cover hinge slots until posts lock and close by hand
4) Squeeze with Pliers until latches lock.
5) Connect both parts together
