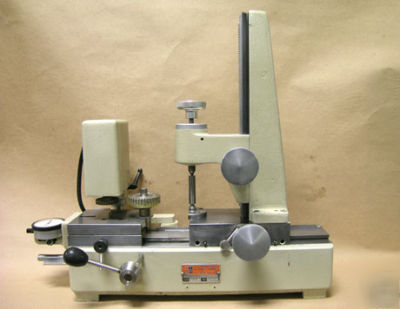

Itw no. 2206-1 bench top gear testing/rolling machine

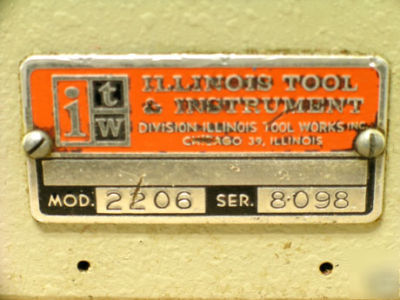

Liberty Machinery Company-You are looking at(1) USED - ITW MODEL 2206-1 BENCH TOP FUNCTIONAL GEAR TESTING GEAR ROLLING MACHINE* Serial No.8098Condition - USED -SPECIFICATIONS:Center Distance - Maximum 6"
Gear Diameter between Vertical Centers - Maximum 6"
Distance between Vertical Centers - Maximum 9"
Movement of Floating Units - Maximum .150"
Disengagement Movement - Maximum 5/8"
Approximate Dimensions 20"L x 6-1/2"W x 18"H

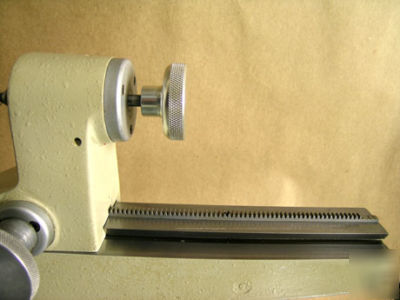

Overarm with Vertical Column for Shafts

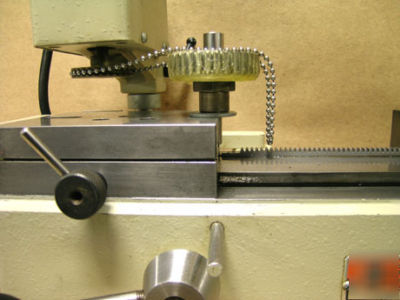

Master Gear 1.5 MOD-20PA, AGMA3B

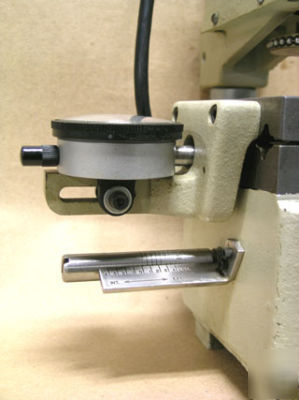

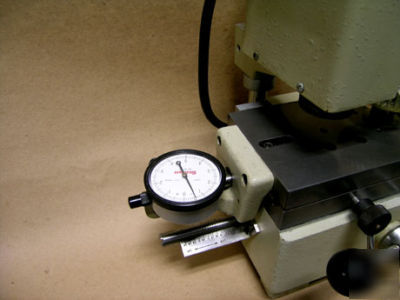

Starret 1/10,000 Dial Indicator (.0001")
