Driver board for 4 axis cnc stepper TA8435H mach 2 3

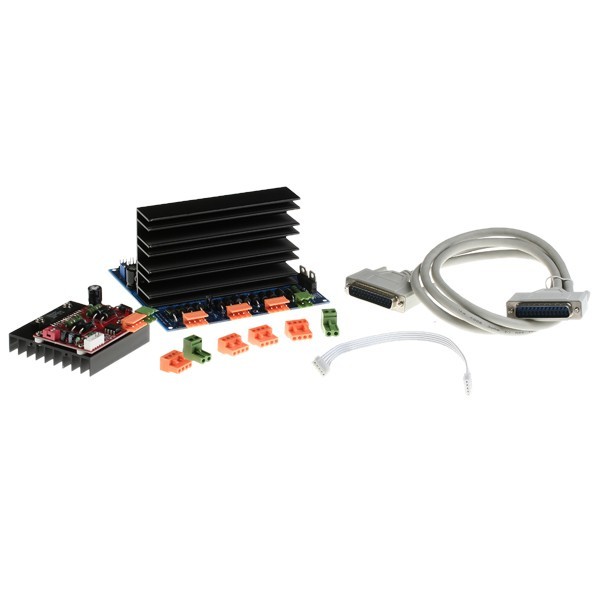

Driver Board for 4 Axis CNC Stepper TA8435H Mach 2 3
* Power source reversal connection protection
* Bipolar constant phase flow and resolution set-up control method
* Driving current of 1.5A per phase. Peak value of current being 2.5A per phase
* Main axis control (PWM speed adjustor or relay)
* Works with MACH2, MACH3 and any software
The driver board is brand new and boxed and comes with interface cable, connectors and diagrams plus a link to a web site for more information and instructions
* Power supply: 12V - 24V DC, capacity 100VA
* Output current: peak value 2.5A per phase
* Driver method: constant phase flow PWM control
* Resolution setup: full step, 1/2, 1/4, 1/8 (you can use the load short-circuit jumper to set-up)
* Auto semi flow: full flow/semi flow, pulse free semi flow: 60% of phase current
* Cooling method: heat sink plate (use fan if running long term)
* Working conditions: avoid dusty, oily, foggy and gaseous environments
* Working temperature: -10 C - +50 C
* Dimensions: 128 x 120 x 80mm
