> Russian nos tubes gs 35B / GS35B 1500W triode
Russian nos tubes gs 35B / GS35B 1500W triode

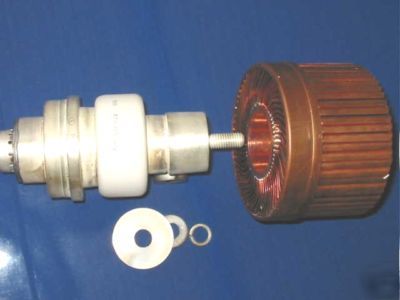

This is ONE NOS Russian (Soviet) triodes GS35B.
A forced-air cooling, metal-ceramic form made, generator triode. Main functions are high frequency generation and amplification. Output power is up to 1500W, frequency rang is up to 1000 MHz.
Max anode constant voltage 3000 V.
Max anode pick voltage 6000 V.
Max cathode current (effective) 1.4 A.
Max anode dissipation power 1500 W
Max grid dissipation power 25 W
Frequency range up to 1000 MHz
