Digital-ultrasonic thickness meter,testing gauge,tester

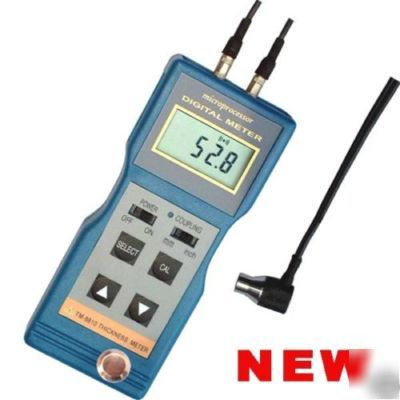

TM-8810 Digital Ultrasonic Thickness Gauge
* Measuring range (metric/imperial): 1.2-200mm,0.06-8inch
* Operating principle: ULTROSONIC
* Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron
* Lower limit steel pipes: 15x2.0mm, 20x3.0mm determined by the transducer
* Calibration block: included
* Power supply: 4x1.5vaa(UM-3) battery
* Operating conditions:0-+45 (32 -104 ), 90%RH
* Weight: 208g(not including battery)
6M 6mm thin Material probe:Measuring range(steel): 1.0 50.0mm Operating temperature: -10~+60
5M 12high temperature probe: Measuring range(steel): 1.0~225.0mm(normal temperature) Measuring range(steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300
* C$22.0 by DHL or EMS,4-7 days
If you have any problems or need(Optional Accessories),Plz don't hesitate to contact me(****@gmail.com).
