Hp E4433B opt's 1E5/und/UN4/UN5/UN7

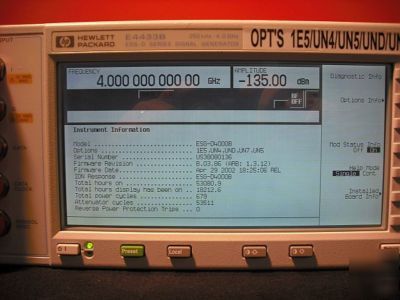

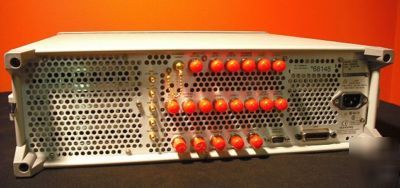

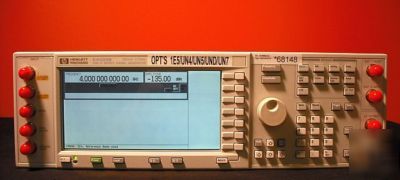

HP E4433B 250kHz to 4 GHz - Digital RF Signal Generator
The HP E4433B RF Signal Generator Offers a Wide Range of Digital Modulation Capabilities for Research and Development, Manufacturing or Troubleshooting Applications. Providing a Comprehensive Feature Set, it Generates Standard and Custom Digital Modulation Formats, Filtering and Burst Shapes, as well as Versatile Analog Modulation, With Superior Quality, Reliability and Worldwide Support (Through Agilent) - at an Affordable Price.
* 1E5 - High Stability Timebase
* UN4 - Baseband I/Q Generator With 8 Mbits RAM. < Equivalent to Agilent's Options UN8 and UN9
* UN5 - Multicarrier, Multichannel CDMAone Personality for option UND
* UN7 - Internal Bit-Error-Rate Analyzer
* 250 kHz to 4 GHz Frequency Range
* RF Modulation Bandwidth Up to 35 MHz
* Optional Dual Arbitrary Waveform Generator
and/or Real-time I/Q Baseband Generator
* 40 MHz Sample Rate and 14-bit I/Q Resolution
* 1 Msample (4 MB) Memory for Waveform Playback and
1 Msample (4 MB) Memory for Waveform Storage.
* Custom Digital Modulation (>15 variations of FSK, MSK, PSK, and QAM),
AM, FM, Phase Modulation, Pulse Modulation, and Step/list Sweep (frequency and power)
* E443xB Signal Studio Software Personalities
* E443xB Firmware Personalities
(3GPP W-CDMA, cdma2000, IS-95-A, GSM/EDGE)
* GPIB and RS-232 Connectivity
