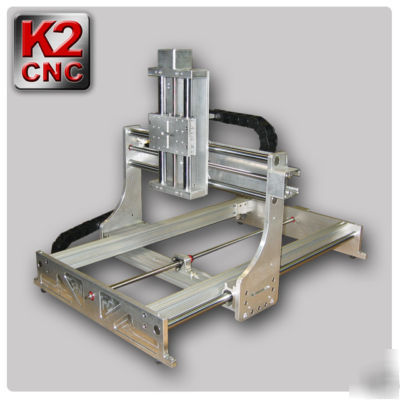

2009 K2 cnc router, cnc mill - milling machine 1414(5)t
New KT-1414-09 3-4 Axis Steppers
Travel of (Y)14" x (X)14" x (Z)5.5"
(Version 2009) (Shaft linear motion, steppers or K2 servo compatiable)
The new KT-1414-09 has 20mm shafts, antibacklash nuts, wider 19 inch material capacity. Use this accurate machine to cut thin aluminum, plastics, and wood. The anti-backlash nut and the .100" pitch leadscrews provide very accurate resolutions and is great for fine inlay work. The pitch also provides great mechanical advantage when cutting hard woods and have been tested to cut 3/8" deep on hard woods at 70IPM using a 3/8" diameter cutting bit. The frame is compatible with Nema 23 motors or K2 servo motors. With the right approach in your toolpaths, spindle, cutting bits, and accessories you can achieve results in milling with this machine that once required a cnc machine that is priced over $30,000. With the KT1414-09 you now can do this in your own garage, business, or anywhere with 110V outlet for a fraction of $30,000.
+ New KT-1414-09 Frame (Shaft linear motion), + leadscrews .100" pitch and Kerk anti-backlash nut.
+ Table Top with T-slots (2 inches apart, uses 1/4-20 nuts and screws) - Retails $215
+ Selection of .375" or .250" diameter coupler for your motor shaft. Includes .250" end coupler for the machine leadscrews.
+ 3 Stepper Nema 23 motor (275 oz/in),
* Standard High Torque stepper on Z axis.
Standard Features of the KT shaft models.
+ Y=20"or longer (table supports 20").
+ Machine bottom X=22" Y=23" Z=24.5"
+ Machine top X=26" Y=25" Z=24"
+ with Motor top X=29" Y=28.5" Z=28"
Recommended Features of the KT models.
(Version 2009, Launching April 09)
