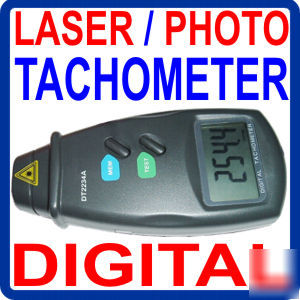

Digital laser tachometer non contact photo rpm tach os
Non Contact Digital Laser / Photo
You can measure rotational speed with a visible Laser beam
Safely carrying your tachometer !
This is a high quality Digital Laser Tachometer. With its help you can measure the rotational speed with a visible light beam. You simply need to attach a reflective sticker to the rotating part and
point the beam on the mark from a safe distance.
It is a perfect tool to measure the RPM of motors and machine parts. It can be used to precisely measure the speed of lathes working with wood and metal.
Wide measuring range & high resolution
The last value/max. value/min. value will be automatically stored
Display: 5 digits, 18mm LCD displaying
Test range: 2.5 to 99999 RPM (r/min)
- 0.1 RPM (2.5 to 999.9 RPM)
Accuracy: (0.05% + 1 digit)
Sampling time: 0.8 sec. (over 60 RPM)
Test range select: automatic;
Memory: max. value, min. value last value;
Detecting distance: 50 to 500 mm;
Time base: 6MHz crystal oscillator;
Circuit: exclusive one-chip of microcomputer LSI circuit;
Battery: 3 X 1.5 V AA (UM 3) battery;
Power consumption: approx. 40mA(operation);
Operation temp : 0 to 50 V (32 to 122 F);
Digital Laser Tachometer DT-2234A;
