> Tektronix TSG601 serial component generator tsg 601
Tektronix TSG601 serial component generator tsg 601

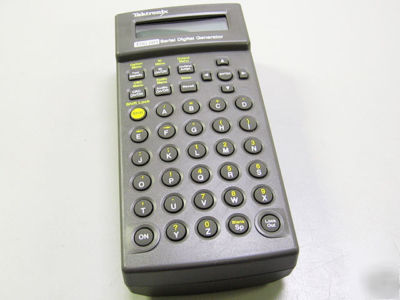

TEKTRONIX TSG601 SERIAL COMPONENT GENERATOR TSG 601
The TSG601 Serial Component Generator provides Serial Digital Interface (SDI) check field test signals that stress receiver clock recovery and phase lock loop circuitry. Data signal launch amplitude may be varied over the SMPTE specification range to check equalizer performance, and a built-in 50 meter cable simulator may be used to quickly check available signal strength margin.
In addition to a full complement of system test signals, the TSG601 includes signals to test DAC performance and the accuracy of subsequent encoding into the PAL or NTSC domain.
This item is useful for the following applications:
* Installation and Maintenance
This unit offers the following tests signals:
* Valid (Encodes to PAL or NTSC) 5 Step Modulated Staircase
* Valid Modulated Pulse and Bar
* 60% Line Sweep With Markers at 0.5, 1.0, 3.0, 4.0 and 5.0 MHz
* 500 kHz Reduced Amplitude Bowtie
* Shallow Ramp, Settable Levels
* Four Channels of Embedded Audio
