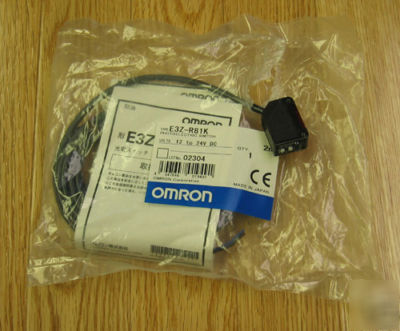

Omron E3Z-R81K retro-reflective sensor 0.15M-3M
**Items is new but the bag was opened in order to bench test the unit.
Polarized retro reflective sensors pre-wired with a 2 Meter cable
http://www.ia.omron.com/product/item/e3z_1267c/
Retro-reflective with M.S.R. function
0.15 m to 3 m (When using the E39-R1S)
12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
(DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 100 mA)
Output reverce polarity protection
Mutual interference prevention
Incandescent lamp:3000 lux Max., Sunlight:10000 lux Max.
20 M OHM Min. at 500 VDC between charged parts and the case
1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
Company standard: Oil resistance
Emission Enclosure: EN55011 Group 1 classA
Operation indicator(orange), Stability indicator(green)
