New 12 to 24 volts ac or dc water solenoid valve brand

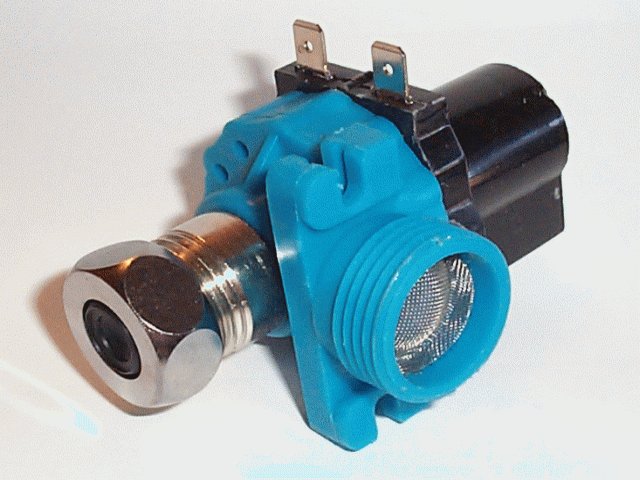

12 to 24 Volts Ac / Dc Water Solenoid Valve.
No model number or known manufacturer. I checked these for flow, at 0.5 Psi - 0.323 Gal/Min and at 45 Psi - 4.457 Gal/Min. So it works best with some sort of pressure, I didn't have any higher water pressure to check it at, but it closed completely at 45 Psi. Overall size about 3.1"L x 2.2"W. Brand new.
* Type: Normally Closed Water Valve (Tested on water only)
* Duty Rating: Continuous? but it does get hot!
* Voltage: 6-24VDC or 24VAC (Amperage draw will change depending on Voltage applied)
* Flow: 0.5 Psi-0.323 Gal-Min / 45 Psi - 4.457 Gal Min
* Terminals: Quick Disconnect / Solder Type
* Inlet Port: 1 OD Dia 16 Thread Plastic Fitting w/Mesh Filter ( Water Hose Type)
* Outlet Port: OD Dia 16 Thread Aluminum
* PSI: Not Known but has been tested at 45 Psi. Not rated for high pressure.
* Manufacturer: Not Known Either.
I have had many people use these valves for irrigation or watering systems. Water fill valves for many applications (Christmas tree watering system). Rodent/Varmint water shooter system. Sprayer valves for gardens, and pesticide spray pumps.
Q: Do the valves allow water flow at zero Psi (i.e. as a dump valve)? Thanks.
A: No, They cannot be used as dump valves, the orifice is too small and they need pressure to operate properly.
Q: Does the Water Solenoid Valve allow for water flow both ways, or is it only directional one-way. Thanks.
A: I tested the valve in only one direction, and based on the design of it, believe it only to be a one way valve.
Please read this AD completely and if not satisfied with information then feel free to Email me with any questions you may have.
EMAIL ME WITH ANY QUESTIONS!!!! ****@heezy.com
Everybody seems to have a different idea of what condition is so, to avoid any problems, I try and not state condition of my items unless they are new. I do take VERY accurate pictures that do not hide defects, if any. If there is an ugly side, it will be pictured.
I took some extra photos to show the detail of the inside of the valve and give some more measurements, this was the valve I used for testing purposes. It's easy to take apart to clean and or for understanding the workings of the valve.
Some additional notes on maintenance.
* The valve can easily be taken apart to clean any debris off internal components.
* The spring and metal rod can also be cleaned and lightly lubricated using a light machine oil.
* The diaphragm seal may be lubricated with a very light coating of Vaseline to keep like new.
* If valve fails to open or close while under pressure, be sure the 2 holes in the diaphragm are clear.
* To clean the metal inlet screen, take valve apart. Remove diaphragm like in photo #13, and flush backwards with water till clear. Do not try and remove screen from valve as it may damage it.
