Mastech HY3003F-3 dc power supply dual var 0-30V @ 0-3A

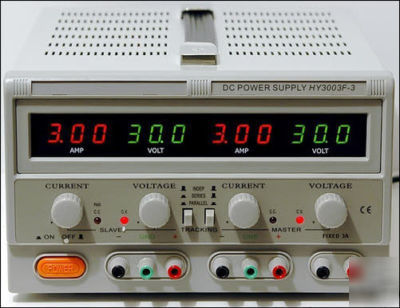

MASTECH HY3003F-3 LINEAR TRIPLE DC POWER SUPPLY
BRIGHT RED AND GREEN LED METERS
DUAL VARIABLE VOLTAGE: 0 TO 30 Volts / CURRENT: 0 TO 3 Amps
Brand New in Box - 1 Year Warranty
his newest MASTECH DUAL output grounded DC power supply is of very high quality construction by MASTECH. Excellent for lab use with the two variable 0-30 volt 0-3 amp outputs. Other uses include science projects or any other use where stable voltage up to 30 volts is required. For the two variable outputs the voltage is variable from 0 to 30 volts and the current is also variable from 0 to 3 amps. There is a third DC output which is FIXED at 5 Volts and 3 Amps.The 2 sets of dual digital color LED meters display the actual voltage and current within 2 percent.
The unit also has a switch to choose among INDEPENDENT, SERIES or PARALLEL operation which can provide either dual 0-30V @ 0-3A or one 0-60V @ 0-3A or one 0-30V @ 0-6A.
The complete MASTECH HY3003F-3 specifications:
* Output Voltage: 2 @ 0 - 30 Volts
* Output Current: 2 @ 0 - 3 Amps
* Input Voltage: 110V, 60Hz.
* Constant voltage/ Constant Current
* Voltage and Current adjustment
* Power effect: CV<0.01%+2mV, CC<0.2% + 2mA
* Overload effect: CV<0.01% +3mV, CC<0.2% +3mA
* Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s
* Protection: Current limited & Short circuit protection.
* Operating Temperature : 0 - 102 F ( 0 -40 C), Relative Humidity: <90%
* LED Accuracy is within + or - 2%
