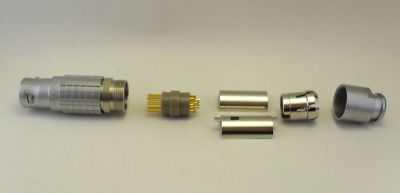

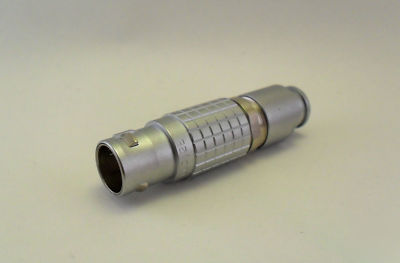

Lemo,fgc.2B.312.CLAD92Z,12POS,male plug,60 deg keying
For Sale: Lemo Plug Connector, FGC.2B.312.CLAD92Z. All (See: Quantities with pricing information)of the connectors are NEW and come complete per the options specified in the part number. Here is the part number break down:
FG = Connector Type: Straight Plug w/Cable Collet and Back Nut to Accommodate a Strain Relief Boot.
2B = Connector Series: 2B Series - UL Recognized - Vaccum Seal Shells.
312 = Contact Insert Configuration: 12 Contacts, 22 Awg wire max., 560vac/830vdc Operating voltage, 7 Amp current rated.
CLAD = C = Outer Shell Material: Brass with chrome matte surface treatment & finish, L = Insert Material: PEEK, A = Contact Type: Male - Solder, D = Collet Type: Standard B Series Collet.
92 = Collet Size (Cable Range): 8.1mm to 9.0mm cable diameter.
Z = Variant (from Standard): Strain Relief Back Nut.
The sale of these connectors is being brought to you by Supreme Cable Technology Inc. You can visit their WEB Site at:
Thank you for looking! Have a great day!
