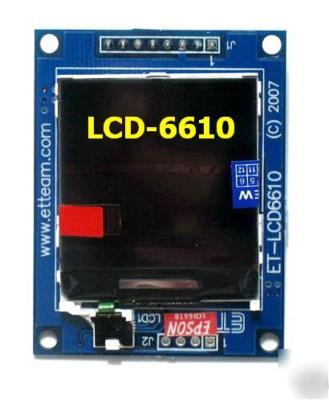

Glcd - graphics lcd 6610 color 132X132 pic avr arm
1. Graphic size 132 x 132 pixels
4. 9 Bits SPI interface serial communication
6. DC power supply 3.3 5.5 Volts
7. Support to 3.3V and 5V micro controller
LED Backlight power supply 3.3-5.0 Volts
LCD power supply 3.3-5.0 Volts
1 : Disable data port (SDATA , SCLK is High Impedance)
Note : J2 pin is designed to hold LCD module (Not used)
1. NOKIA 6100 LCD Display Driver datasheet
2. S1D15G00 processor series datasheet
3. User Guide => http://rapidshare.com/files/262208485/ET-6610_LCD.pdf
4. Example code for AVR , LPC2000 , PIC , STM
