20 ton lapointe hydraulic horizontal broach #24007

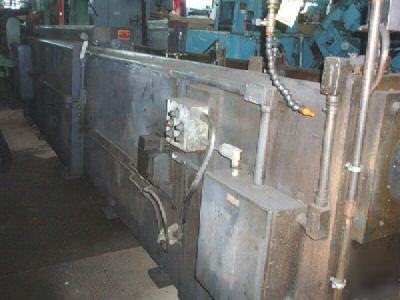

20 TON LAPOINTE HYDRAULIC HORIZONTAL BROACH
New 1953, Serial No 53138, Model HP40SPEC
(2) Large Racks Of Tooling Including Cutters,
(1) Large Wooden Crate Of Tooling, Supports, And Parts
Tonnage Capacity........................ 20 TON
Stroke Length, Maximum.................. 96"
Broaching Speeds, Variable Range........ 0 to 20 FPM
Broach Return Speed, Maximum............ 100 FPM
Spindle Motor, Horsepower/RPM........... 30 HP/1175 RPM
Floor Space Required, L x D............. 19' x 3'3"
Weight, Approximately................... 12000 LBS
From Service From Machine Tool Manufacturers Plant.
