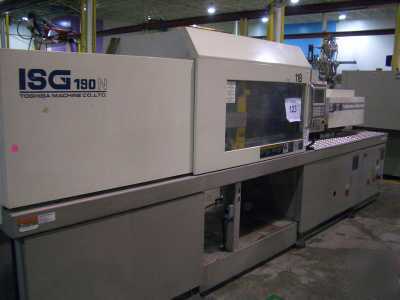

190 ton, 10.2 oz. toshiba injection molding machine '98
190 Ton, 10.2 Toshiba Injection Molding Machine
Platen Size ........................ 29.10" X 29.10"
Distance Between Tie-Bars .......... 20.00" X 20.00"
Max. Mold Open Stroke ........................ 28.3"
Min. Mold Height .............................. 9.1"
Daylight ..................................... 37.4"
Max. Hyd Eject Force ...................... 7.16 Ton
Max. Eject Stroke ............................. 4.7"
Approximate Dimensions: 22' L 6'10" W 7'6" T
Approximate Weight: 21,500 lbs
