#9822 - eurotech 710SLL 7-axis cnc turning center

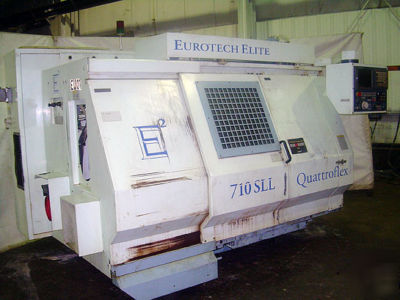

EUROTECH MODEL 710SLL QUATTROFLEX 7-AXIS CNC TURNING CENTER WITH LIVE TOOLING & SUB-SPINDLE
Variable Speed Range 80 - 4000 RPM
Inside Dia. of Front Bearing 100mm
Tool Shank for Outer Turning 25mm x 25mm
Tool Shank for Inner Turning 32mm
Turret Indexing (1 position) 0.6 sec.
Variable Speed Range 100 - 3000 RPM
X-Axis Rapid Traverse 20 m/min.
Z-Axis Rapid Traverse 20 m/min.
Inside Dia. of Front Bearing 80mm
X-Axis Rapid Traverse 12 m/min.
Min. Programmable Value 0.001 Degree
Pump Nominal Displacement 230 liters/min.
Machine with Swarf Conveyor 4350mm x 2380mm x 2200mm High
Maching Weight with Swarf Conveyor 7200 lbs.

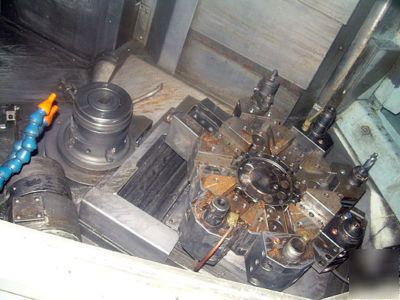

Upper & Lower Turrets with Live Tooling
C-Axis on both Main & Sub Spindles
Iemca TAL 65/38 Magazine Load Bar Feeder, S/N 0200010D060
