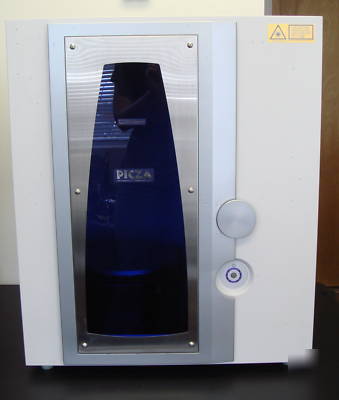

Roland lpx 600 picza 3D laser scanner
New, never been used. In perfect condition. Due to weight (approx. 200 lbs) Freight is required, which is not included in the sale price of $10,000. Comes with Power Cord AC Adapter, CD-ROM and User's Manual. List price is $12,595. Please contact with any questions.
Detailed information from Roland's website;
* Automated 3D scanning at the touch of a button
* LPX-600 scanning volume: 16 tall and 10 in diameter
* 0.2mm (0.008 ) maximum scanning resolution
* Bundled LPX EZ Studio reverse engineering software
* Exports CAD models in point cloud, STL, PIX and 3DM data formats
* Attractive, compact design for office environments
Countless CAD/CAM Applications

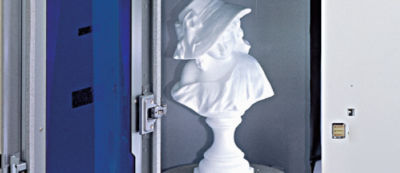

The LPX-600DS scans objects up to 16 inches tall and 10 inches in diameter, enabling designers to scan complex, organic shapes in minutes. CAD/CAM applications include hand-held consumer products, blister package design, hand-sculpted characters for feature animation, and face models for anaplastologists.

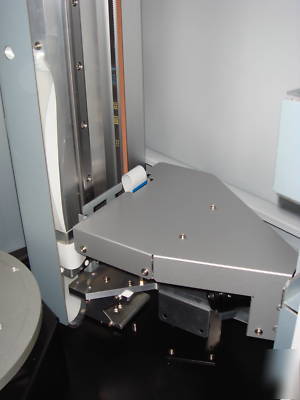

The LPX Series uses advanced non-contact laser sensors to quickly generate precise models with 0.008 inch scanning resolutions. The combination of precision laser optics and motion control within a rigid enclosure lets design engineers produce high quality scans with minimal surface noise.
Bundled Roland LPX EZ Studio typically saves designers two to five hours on every scanned object. The reverse engineering software automatically scans, aligns, merges planes, fills holes, and decimates 3D models. It exports CAD models in a wide range of data formats, including point cloud, STL, PIX and 3DM.
Point cloud data is used directly in SolidWorks 2007 Office Premium and other CAD software. STL files are used by the industry s most popular rapid prototyping systems, including those manufactured by Roland, 3D Systems, Stratasys, Z-Corp and Solidscape.
The LPX-60DS/600DS also comes with Dr. PICZA3 scanning software, which allows users to scan an entire object or capture a specific area. The software can also export poly-line or point cloud scanning data as a 3D CAD file.
Plane scanning: Width 254.0mm (10 in.), height 406.4mm (16 in.)
Rotary scanning: Diameter 254.0mm (10 in.), height 406.4mm (16 in.)
Plane scanning: width direction 0.2 to 254.0mm, height direction 0.2 to 406.4mm.
Rotary scanning: circumference 0.18 to 3.6 degrees, height direction 0.2 to 406.4mm
0.05mm (This figure reflects standard scanning conditions established by Roland DG.)

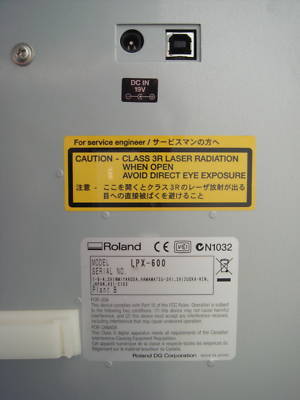

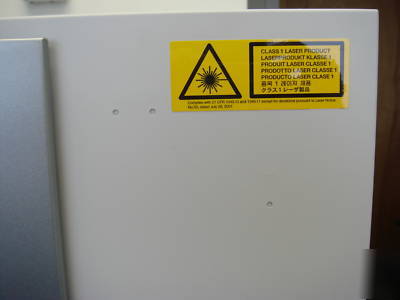

Maximum output: less than 0.39 W
(maximum output of the laser light emitted inside housing is 0.1mW)

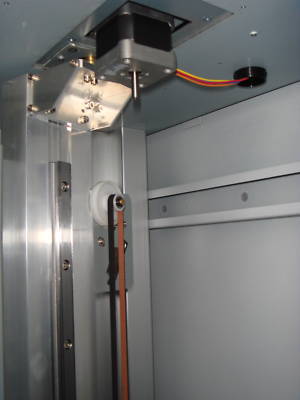

Table rotation speed: 9rpm, head rotation speed: 4.5rpm, maximum head movement speed: 37mm/sec.
USB (compliant with Universal Serial Bus Specification Revision 1.1)
Input: AC 100 to 240 V 10% 50/60 Hz 1.7A,
Approx. 20W (including AC adapter)
630 [W] x 506 [D] x 761 [H] mm (24.8 [W] x 19.9 [D] x 29.9 [H] in.)
Temperature: 10 to 40 C (50 to 104 F) (25 C [77 F] or more recommended)
Humidity: 35 to 80% (no condensation)
System Requirements for Included Software
Windows XP/2000/Me/98 SE (Second Edition)
Pentium 4 processor or better recommended
Free hard-disk space required for installation
800 x 600 resolution and 16 bit color (High color) or more recommended.
OpenGL-compatible accelerator board recommended.
System Requirements for USB Connection
