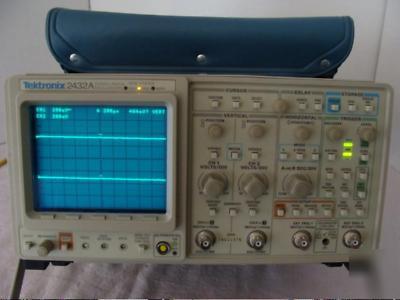

Tektronix 2432A 300 mhz digital oscilloscope w/opts

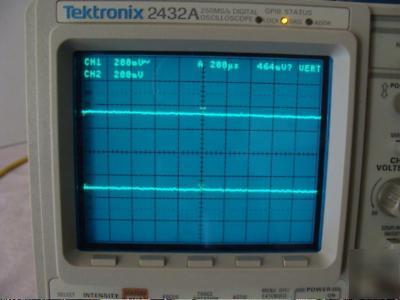

The Tektronix 2432A oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Tektronix 2432A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
SPECS: ***2 channels. Bandwidth: ***300MHz. Sensitivity: ***2mV/div. - 5V/div. Sampling rate: ***100MS/s. 8 bit. 1k points/wave form. 40MHz single shot. ***Wave Form extraction. *** Auto step and set-up. ***Printer/plotter output.
