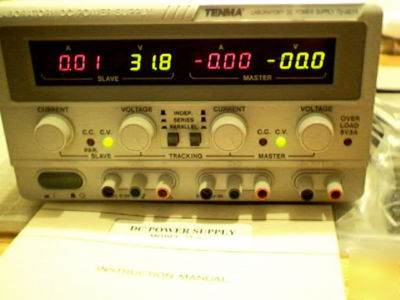

New tenma 72-6615 labratory power supply 3 output
Write a review for a chance to win a 22" Coby TV each month.
Triple Output Tracking Power Supply
Laboratory grade power supply provides adjustable 0~30VDC output, and 0~3A adjustable current limiting, on each of two isolated channels, plus an isolated fixed 5VDC output. Four independent three digit LED displays simultaneously show output voltage and current for each variable channel.
* Selectable independent, series and parallel operation
* Constant voltage and constant current operation
* Overload and reverse polarity protection
* Includes test leads and owners manual
* Output voltage (each channel): 0~30VDC
* Output current (each channel): 0~3A
* Tracking series output: 0~60VDC, 0~3A
* Tracking parallel output: 0~30VDC, 0~6A
Constant Voltage Mode (CH1, CH2)
* Line Regulation: 0.01% +3mV
* Load Regulation ( 3A): 0.01% +3mV
* Load Regulation (>3A): 0.02% +5mV
* Ripple & Noise: 1mV RMS (5Hz ~ 1MHz)
Constant Current Mode (CH1, CH2)
* Line Regulation: 0.2% + 3mA
* Load Regulation: 0.2% + 3mA
* Dimensions: 5 " (H) x 10 " (W) x 13 " (D)
