Fischer & porter co. fp series variable area flowmeter

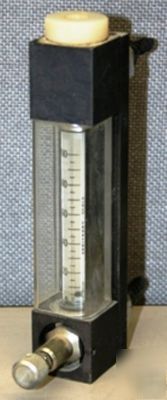

Fischer & Porter Co. FP Series Variable Area Flowmeter Acrylic VA Flowmeter
* Easy to read English or Metric Scales
* Water ranges from 4 CCM to 20 GPM
* Air ranges from 50 CCM to 4000 LPM
* Threaded brass, stainless, or PVCNPT inserts for quick installations
* Easy disassembly and assembly for easy maintenance
* Durable one piece clear acrylic construction
* Stable, easy to read float
The Series FP Acrylic Variable Area Flowmeters are an excellent low-cost alternative for a wide variety of liquid and gas measurements. The clear acrylic body features an easy to read scale, brass, stainless steel or PVC NPT connections and optional built-in control valves. The rugged acryclic construction makes the Series FP virtually unbreakable in most industrial applications. These flowmeters can be used with any liquid or gas chemically compatible with the component materials and within the temperature and pressure limitations.
* Accuracy: 2, 3, or 5% full scale
* Maximum Pressure: 100 PSIG (6.9barg)
* Maximum Temperature: 150 F (65 C)
* Body Material: Clear Acrylic
* Float Materials: Black Glass & Stainless Steel or Stainless Steel Only
* Seals: Buna N o-rings with brass or PVC fittings; Viton o-rings with stainless steel fittings
* Fittings: Brass or stainless steel NPT female connections; PVC NPT connections
* Valves: Brass or stainless steel cartridge type optionally available; Plastic type valve available for external mounting
