Era-5 sm +17DBM P1DB 4GHZ minicircuits mmic (X3PCS@)
DC ~ 4GHz/+17dBm P1dB/3.5dB NF

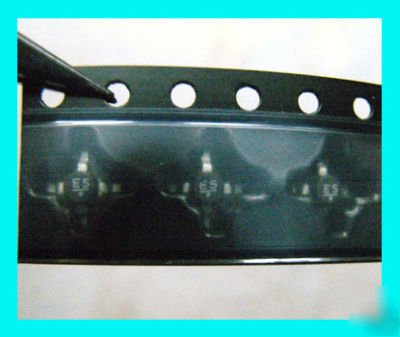

Here is one lot of 3 pieces of Mini-circuits ERA-5SM, DC to 4 GHz MMIC housed in a Micro-X surface mount package. Being unconditionally stable and internally matched to 50 ohm, the ERA-5SM is one of the popular MMIC used in RF circuitry.
ERA-5SM is a wideband amplifier offering high dynamic range and low noise figure. Typical applications are Cellular/PCS/ 3G/DBS, CATV/WLAN/Microwave Radio. Its low performance variation over temparature also makes this MMIC widely used in Test Equipment.
* Noise figure: 3.5 dB @ 2GHz
* Gain verus Temperature: - 0.0043dB/C @ 2GHz
Download datasheet here. Please note that these are ERA-5SM NOT ERA-5SM+, so they are not RoHS compliant!
Euro 7.9 each by Barend Hendriksen HF Electronics
