New grizzly 8" x 76" jointer w/4 knife cutterhead G0490

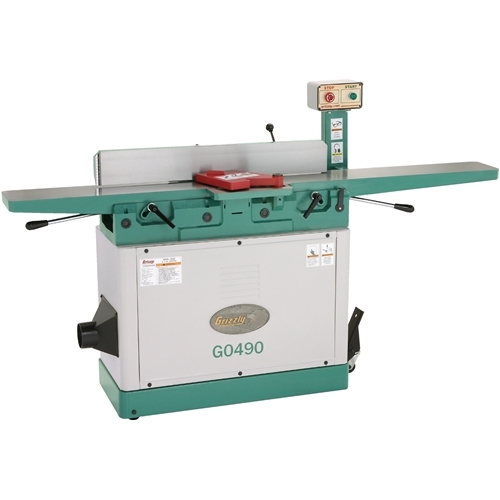

G0490 8" Jointer w/ Parallelogram Beds
Our newest 8" Jointer is sure to be popular among both professional and hobbyist woodworkers. The extra long 76 5/16" table and the extra long and extra tall fence will make sure your stock is cut accurately. The easy to reach pedestal mounted switch and lever controlled table elevation make this a joy to operate. Out foot pedal operated, built-in mobile base will allow you to keep this monster out of the way, yet easy to move when needed. We made the welded steel cabinet extra large for an incredibly stable platform. This machine will gobble up wood with ease and produce smooth, straight and flat stock all day long.
* Motor: 3 HP, 220V, single-phase, TEFC, 3450 RPM
* Total table size: 8" x 76 5/16"
* Infeed table size: 8" x 43 3/8"
* Cutterhead knives: 4 HSS, 8" x 3/4" x 1/8"
* Cutterhead speed: 5350 RPM
* Cutterhead diameter: 3 3/16"
* Max. rabbeting depth: 1/2"
* Deluxe cast iron fence size: 35"L x 1 1/4"W x 5"H
* Shielded and lubricated bearings
* Precision ground cast iron tables
* Easy access lever adjusted tables with height gauge
* Heavy-duty center mounted fence with angle gauge
* Built-in dust chute with 4" port
* Table adjustment mechanism all components are interlocked for maximum precision
* Pedestal mounted switch for convenience
Free pair of Safety Push Blocks included with machine.
To view the manual for this item, please click here:
http:// /images/manuals/g0490_m.pdf
