New digital photo tachometer rpm tester measurement

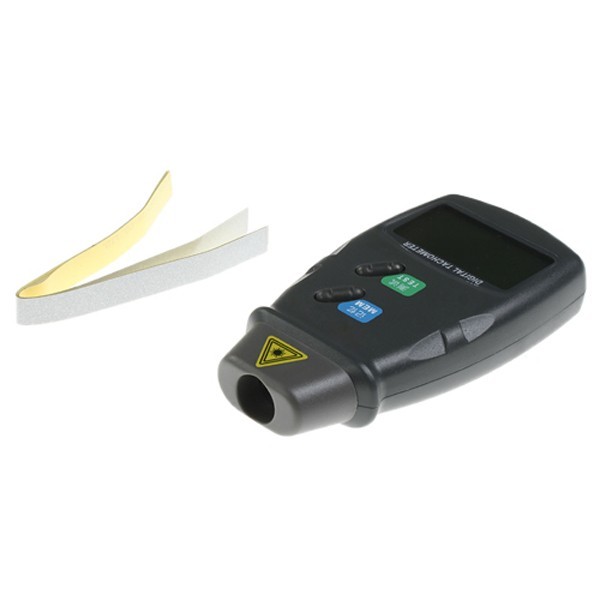

Digital Photo Tachometer RPM Tester Measurement New
Unlike some lesser models on the market, this tachometer has a fantastic, wide measuring range of 2.5 to 99,999 RPM.
The clear digital display shows the exact RPM with no guessing and no errors whilst the memory function will store the last taken maximum and minimum values at the press of a button.
* Wide measurement range of 2.5 to 99,999 RPM
* Retrieve last maximum and minimum reading at a press of the 'memory button'
* Fast and accurate readings - no guesswork or errors
* Lightweight yet tough ABS plastic case is ergonomically shaped to fit comfortably in either hand
The ergonomically designed casing fits comfortably in either hand and is made from ultra light, yet durable ABS plastic, protecting the delicate internal workings and ensuring maintenance free performance for years to come.
* Display: 5 digits, 18mm (0.7") LCD with function annunciation
* Test range measurement: 2.5 to 99,999 RPM
* Resolution: 0.1 RPM (2.5 to 999.9 RPM), 1 RPM (over 1,000 RPM)
* Accuracy: (0.05% + 1 digit)
* Sampling time: 0.8 seconds over 60 RPM
* Photo detection distance: 50 to 500mm/2 to 20"
* Test range select: automatic
* Memory: maximum, minimum and last value
* Detecting distance: 50 to 200mm/2 to 10"
* Circuit: One chip of microcomputer LSI circuit
* Power consumption: approx 35mA
* Operating temperature: 0 - 50 C (32 - 122 F)
* Dimensions: 131 x 70 x 29mm
* Weight: 160g (inc battery)
* Carry/storage case with internal padding
* 600mm reflective tape marks
