Magnetic card reader and writer encoder comp MSR206 usb
3 track Hi-co & Lo-co Magnetic Card Reader and Writer Encoder With RS232-USB Converter and Blank Magnetic Card
Magnetic Card Reader and Writer
NEW Magnetic Card Reader/Writer For Lo&Hi Co Track 1, 2 & 3
MSRE206 can be operated easily with reliable performance. It is a perfect magnetic stripe read/write device for computer system in financial department.
It's manufactured at our ISO 9001-2000 certified factory, have best quality.

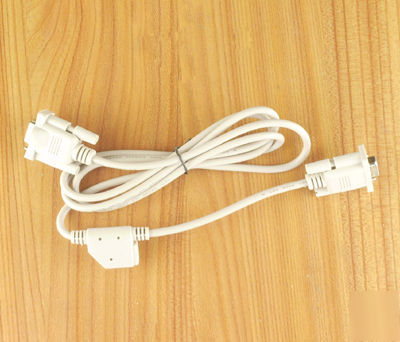

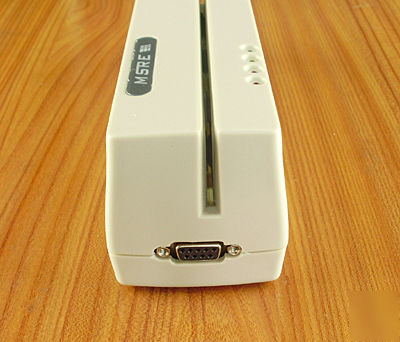

1). Communication: RS232 (cable included), USB 2.0( USB- RS232 converter included)
2). Reading/writing magnetic stripe cards complies with ISO 7811 / 1~6, ANSI formats
3). Read/Write High and Low Coercive force of magnetic stripe (300~4000Oe) for track 1, 2 & 3
5). 5~35ips operational swipe speed of writing data
6). 5~55ips operational swipe speed of reading data
7). Input: 100-240VAC, Output: +24VDC+/-10%, 2.5A Max., external power adapter attached
8). Card thickness: 0.76-1.2mm
9). Writing and verifying data on single, dual, or triple track in one swipe
10). Programming software included for various read/write applications
11). Program software for DOS, Vista, Windows XP, 98, Me, 2000 and so on.
12). High/Low Coercivity encoding circuitry selectable on screen
13). Programmable leading bit, raw data, DMV/AAMVA, and user defined format
14). Compact size with dimensions of 210(L) x 62(W) x65(H) mm
15). Consumption: Typical 350mA Max. and 600mA plus for each writing track
16). Speed of pulling card: 10cm/s 100cm/s
18). Register density: 1/2/3 tracks 75BPI/210BPI is optional
20). Head life: Min. 500K swipes for both read/write head
21). Compatible with ISO7811/1~6 ANSI CUSTOM
22). Operation: 0 to 50 C, 15 to 85% humidity
23). Storage: -30 to 70 C, 10 to 90% humidity
24). Dielectric strength: 500VDC for 1 minute
Click here to download the User Manual, Specification, Demo Software 1, Demo Software 2, USB Driver, Coding for track 1,2 & 3
We provide two kinds of demo software:

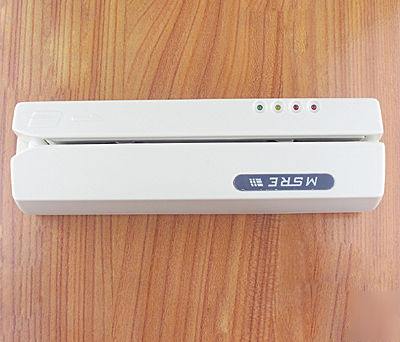

1). 1 Brand New Magnetic Card Reader/Writer.
2). 1 CD includes Two kinds of Demo software, User Manual, Specification, Coding for Track 1 2 3, USB Driver.
3). 1 blank Lo-co magnetic card.
4). 1 blank Hi-co magnetic card.
5). 1 magnetic Head cleaning card.

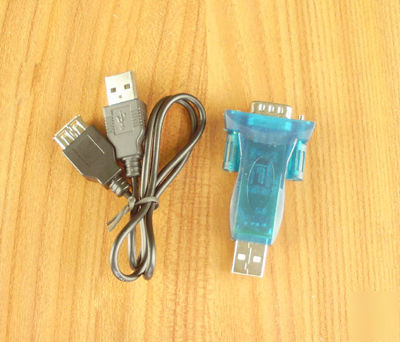

6). 1 RS232 - USB converter and driver.

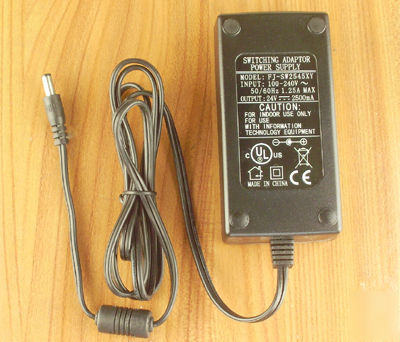

9). 1 Power Adapter + Cable (input 100-240V AC, output 24V DC)

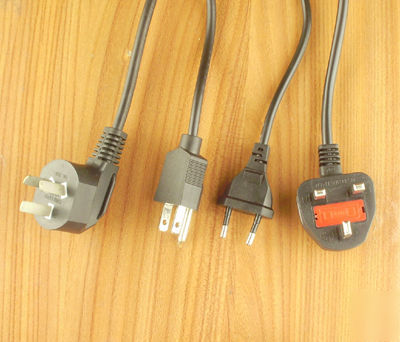

10). 1 AC Power cable ( we can provide USA Standard, Euro Standard, UK Standard and AU Standard,that depends on the location of your country )
4. We will refund to you if the item is unexpectedly out of stock.
(Other countries or remote areas may take longer.)
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
1. You have 30 days to contact us to return it from the date it was received. If this item is in your possession more than 30 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND. There are NO EXCEPTIONS! 30 days refund
1. One-year Manufacturer's Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories one year guaranteecome with a 3-month warranty.
Product quality standards are guaranteed. Most of our products have got CE, FCC and Rohs certified,and also passed ISO 9000 international quality management system. They all produced with best raw and processed materials and advanced technology. Every product must pass strict quality inspection before sales, including shock-proof test, burning testing, battery test and so on.
We are located in the South China, all the products are from manufacturer directly.So we can supply our client the low sourcing cost with high quality.
We are favor of high-quality products. All products must meet the export standards (such as: CE, FCC, RoHS), as well as the prevailing international market quality certification. Products at least a 12-month quality guarantee. After purchasing, we will test all the product one by one, the products in bad quality will be returned to the supplier. Products and accessories (data cable, software, etc.) must be based on high-quality, international packaging form, do not accept the counterfeit goods and shoddy goods.
