> Gn nettest CMA4000 sm mm fiber otdr CMA4456 vfl VFS1
Gn nettest CMA4000 sm mm fiber otdr CMA4456 vfl VFS1
* GN Nettest CMA4000 OTDR MainFrame
* GN Networks OTDR Emulation Software
* Hard Copy Fiber Optic Basics Guide
* Noyes VFS 1 Video Fiber Scope Display
* Noyes VFS 1 Inspection Probe w/
* 2.5mm Universal Adapter
* 1.25mm Universal Adapter
* Cletop Optical Fiber Connector Cleaner

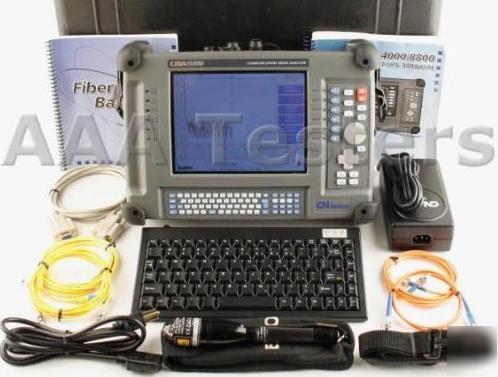

GN Nettest CMA4000 OTDR Mainframe with CMA4456 Singlemode 1310nm / 1550nm & Multimode 850nm / 1300nm OTDR Module w/ Power Meter
Noyes VFS1 Video Fiber Scope With 300X Magnification
SM 1310nm / 1550nm: 21.5dB / 21dB
MM 850nm / 1300nm: 23dB / 26dB
Includes EXFO FLS-235B Pocket VFL, Keyboard, Hard Carrying Case & Full Accessories!
The fastest, smartest, and easiest OTDR in the world!
When it comes to fiber optic testing, time is money. That's why we designed the CMA4000. It offers all the features of a mainframe OTDR in a rugged, economical, field-portable unit and its unique features make it better than other OTDRs. Intelligent software minimizes necessary steps to perform frequent functions, its multi-tasking ability allows the CMA4000 to test, analyze and display data faster than any other OTDR available. Plus, it has incredible deadzone, dynamic range performance, tri and quad-wavelength optics and is fully configurable. In other words, it's the only piece of equipment you'll ever need for all your basic fiber optic testing - whether for installation, maintenance or fault location.
Incredible dynamic range and short deadzones
The CMA4000 offers a test range of 21 to 46dB, the highest dynamic range in the world. That means you can test longer lengths of fiber with greater resolution and less averaging time. Plus, with deadzones as short as 2.5 m, you can be sure you re getting complete and accurate data for your entire length of cable.
The CMA4000 makes your job faster and easier with dozens of unique features:
* One button to test and save
* Automatic evaluation of the test fiber for connection quality and traffic
* Multi-tasking software simultaneously test and analyzes trace data to display results in seconds
* An panel of dedicated keys for easy access to functions you use most as well as a convenient onboard keyboard for entering file names
* Automated software prompts the user for the required information about the cable under test and keeps track of the fibers as they are tested
The CMA4000 is the one piece of equipment that can meet virtually all your basic fiber optic testing needs. If you choose to incorporate a standard power meter, optical return loss test set, light source and visual fault locator, it s the only piece of equipment you ll ever need. You can customize your unit with optional languages, power cords, connectors, keyboard layouts, and date and time formats. The built-in keyboard let you enter important text data, and the large 8.4 display with optional VGA color and flexible configuration, makes the screen easy to read under any testing condition. Plus, the environmentally sealed modules and buttons - along with the rugged case - protect the CMA4000 from dust, rain and impact.
Easy documentation makes it simpler for you
The programmable autosave lets you save test results on the harddrive or floppy in a format that makes sense for your network. These virtually eliminate typing mistakes while saving time in the field. When used in conjunction with our GN NetWorks Software, the CMA4000 can perform a variety of trace manipulations, such as trace overlay, graphing, batch printing and bi-directional averaging reports.
VGA LCD Display (8.4 color or 8.2 monochrome)
Up to 125 traces internal storage. Over 65,000 traces with optional hard drive. Up to 180 traces for a standard 3.5 inch, 1.44 MB floppy disk. Floppy disk drive comes standard
Group Refractive Index Setting
ORL, 2-point, 2-point LSA, dB/KM, dB/KM LSA, splice, reflectance
Overlay, Delta Trace Compare, Align
Real Time, Fast Scan, Medium Scan, Slow Scan, Timed Average (user selectable)
Trace display, FAS event table, integrated trace display with event information window, header page, measurement parameters, ASCII report
High speed integrated fiber analysis
0.125/0.25/0.5/1/2/4/8 dB (module dependent)
0.001 km/div. to 0.448 km/div @ 2 km; 0.001 km/div. to 57.304 km/div. @ 256 km (IOR = 1.5)
Standard: Integral alpha-numeric keyboard, (2) RS-232 Serial, (1) Parallel, VGA, Mouse, External Keyboard Port
English standard (others per request and may require hard drive option)
9.5 H x 13.5 W x 3.75 D (24.1 x 34.3 x 9.5 cm) / 11.0 lbs. (4.9 kg) Includes mainframe, battery and one module
Autoswitching 92-132 VAC, 47-63 Hz [weight 1.7 lbs. (.77 kg)] 184-264 VAC, 47-63 Hz
Sealed Lead Acid Battery Pack [weight 1.4 lbs (0.63 kg)]
up to 9 hours maximum per battery, depending on operating mode
-25 C to 60 C (-13 F to 140 F)
CMA4456 Singlemode MultiMode VFL Module
1550 nm: 3 meters (typical) 850 nm: 6.5 meters (typical)
4 ns to 10 s (wavelength dependent)
0.0025% of distance measurement distance
resolution index uncertainty
2/4/8/16/32/64/128/256 km (wavelength dependent)
The VFS 1 is a portable video microscope designed to inspect ber optic connectors through bulkhead adapters.
The VFS 1 can be used to inspect fiber optic connectors installed in patch panels, distribution frames, network equipment, and test equipment. The VFS 1 is comprised of inspection probe and display unit. The probe includes an internal LED coaxial light source and a miniature CCD video camera. No bulb replacement is required. The front arm of the probe may be used in two positions: straight or 60 . The focus control is located at the rear of the probe. This allows the user to easily focus the probe even while inspecting connectors on equipment back planes or densely packed patch panels. The probe accepts adapter tips that can be quickly changed when inspecting different connector types. The display unit provides a high contrast, active matrix LCD display. The size and resolution of this display and the resolving power of the optics used in the probe allow detection of pits, scratches, and contamination within the polished end of 125 m ber. In addition, a wide eld of view allows inspection of the surrounding ferrule to a diameter of at least 250 m. A video output is provided for an external monitor.
* Easy To Inspect Small Form Factor Connectors
* In-place Inspection Of Fiber Optic Connectors
* Portable and Workstation Models Available
Example: > 250x with a 9-inch (23-cm) or larger display
1 x 1 x 15 in (2.5 x 2.5 x 38 cm)
5 x 8 x 3 in (13 x 20 x 7.6 cm) 4 x 7.5 x 2 in (10 x 19 x 5 cm)
