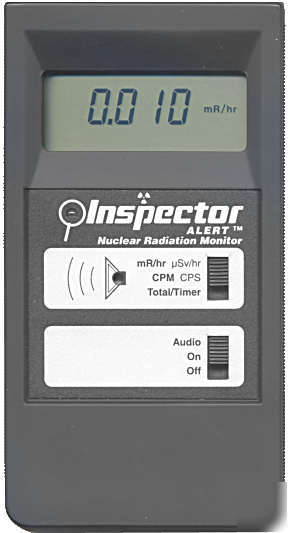

The inspector alert - radiation detector geiger counter
Handheld Surface Contamination Monitor
The Inspector Alert measures alpha, beta, gamma, and x radiation using a 2-inch pancake GM detector with high sensitivity to common beta and alpha sources. The easy-to-read digital display shows readings in your choice of mR/hr or Sv/hr, CPM, or CPS. The Total/Timer feature allows timed readings from one minute to 24 hours for precise measurement of low-level contamination. An audible alert sounds when the radiation reaches a user-adjustable level. The Inspector Alert meets CE certification requirements for Europe.
Monitor personal radiation exposure
Monitor an area or perimeter
Detect radiation leaks and contamination
Ensure regulatory compliance
Monitor changes in background radiation
Demonstrate principles of nuclear physics
Check for radioactive minerals in the earth
Halogen-quenched Geiger-Mueller tube. Effective diameter 1.75" (45 mm). Mica window density 1.5-2.0 mg/cm2.
Display updates every 3 seconds, showing the average for the past 30-second time period at normal levels. Averaging period decreases as radiation level increases. User can select fast 3-second averaging period.
Can set 1-10 minute sampling periods in one-minute increments, 10-50 minute sampling periods in 10-minute increments, and 1-24 hour sampling periods in 1-hour increments
4-digit liquid crystal display with mode indicators
3500 CPM/mR/hr referenced to Cs-137
Smallest detectable level for I-125 is .02 mCi at contact
C-14 (49 keV avg. 156 keV max.): 5.3%
Bi-210 (390 keV avg. 1.2 MeV max.): 32%
Sr-90 (546 keV and 2.3 MeV): 38%
P-32 (693 keV avg. 1.7 MeV max.): 33%
15% up to 50 mR/hr; 20% up to 100 mR/hr
Readout holds at full scale in fields up to 100 times the maximum reading
Red LED flashes with each radiation event
Beeper beeps with each radiation event; can be muted
Dual miniature jack for CMOS or TTL devices, sending counts to computer or data logger. Submini jack for electronic calibration.
One 9-volt alkaline battery; battery life is average 2160 hours at normal background, average 625 hours at 1 mR/hr with beeper off
150 x 80 x 30 mm (5.9" x 3.2" x 1.2")
323 grams (11.4 oz) including battery
Download the Owner's Manual HERE
