Tektronix AM5030 programmable amplifier am 5030
TEKTRONIX AM5030 PROGRAMMABLE AMPLIFIER AM 5030
The AM5030 Current Probe Amplifier with General Purpose Interface Bus (GPIB) adds programmability. The AM5030 enables you to use automated techniques to make wide bandwidth AC/DC current measurements. The AM5030 is a TM5000 single-wide module that plugs into a 3-slot TM5003 power module mainframe. The AM5030 works only in a TM5000 mainframe. The AM5030 uses A6312, A6302, A6303 and the XL Series of current probes and connects to any scope or analyzer via a BNC cable. The AM5030 does not have to be calibrated with specific current probes. This is a tremendous operational improvement over the older AM503 Systems. The AM5030 also provides several improvements over the AM503A, including a faster Degauss/self-calibration cycle and more responsive, reliable front-panel controls. This unit has the following features:
* Simultaneous DC and AC current measurements
* One-button autobalancing and probe degaussing.
* No adjustments needed to match a current probe to an individual amplifier.
* Probe trim adjust allows fine tuning of gain for increased accuracy.
* Programmable control from a GPIB controller.
* Plugs into TM 5000 Power Modules
This unit is in excellent physical condition and will arrive in the condition shown. It comes with a 14 Day Guarantee against being DOA from receipt.

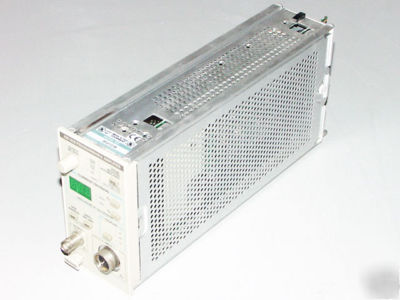

item photograph item photograph
