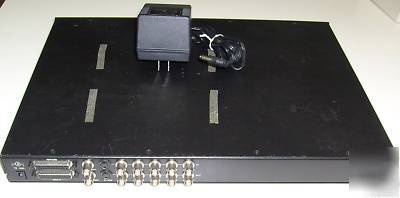

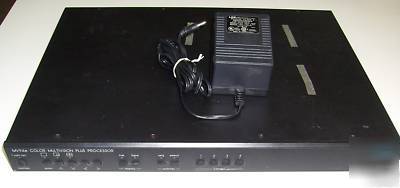

Robot MV94E multivision plus security camera processor
. Compatible with color and B&W video cameras or other NTSC/EIA (PAL/CCIR) standard compatible video sources. Video synchronization is not required. Selectable termination.
. Full duplex operation allows video recording while viewing live video or video playback.
. Dynamic Time Division (DTD) multiplexing allocates camera recording time based upon picture motion content.
. Motion sensing for each camera input is programmable via a 192 motion target grid (16 wide by 12 high).
. Independent Main and Call Monitor outputs allow simultaneous multicamera and full screen viewing.
. 4 Video inputs and outputs provided for both standard and Super VHS video cassette recorders.
. On-screen display includes date, time, alarm status, video loss and 10-character camera titles.
. Live or tape playback views include: full-screen with 2x zoom, Picture-In-Picture (PIP)
. SELECT feature allows any camera to be assigned to any window format.
. Outstanding picture quality provided by a 512 x 464 (512 x 512 PAL) pixel display with 256 gray levels and 16 million colors.
. On-screen menus simplify system setup.
. Alarm features include one contact closure and TTL/CMOS sensitive alarm input for each camera, alarm hold input and alarm output. Alarm input polarity is selectable.
. Nonvolatile program memory protects all programmable features against power loss.
