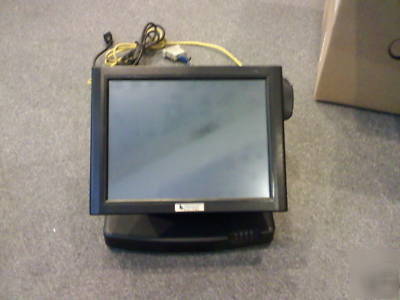

Pinnacle javelin viper 1.5 point of sale system
* L2 Cache, 512K Synchronous Pipelined
* 16MB to 256MB Synchronous DRAM DIMM
* Optional Flash Drive, up to 32MB
* 10/100BaseT Ethernet integrated PCI controller, autodetect
* Optional modular MSR with Smart Card Support
* Fully integrated single-board design
* Integrated resistive membrane touch screen, mouse type
* Super-twist 12.1" TFT Passive or Active Display
* Spill-proof / water-resistant
* Automatic backlight dimming when inactive for extended life
* -20 to 60 degrees tilt angle
* 6 Serial ports, 4 external with RJ-45 connectors, 2 internal for
* 1 Enhanced parallel port, ECP/EPP
* 1 Ethernet 10/100BaseT port
* 1 External floppy interface
* 1 PS/2 type keyboard interface
* Cash drawer port supports up to 2 cash drawers using Y-cable
* Up to 50ft. standard category 5 cable
* Up to 100ft. with special Javelin cable
* LAN drivers for multiple networks
* Microsoft Windows NT, Windows 95/98, and Windows 3.11
* Dimensions: 11.94" W x 10.50" D x 10.35" H (without MSR)
12.75" W x 10.50" D x 10.35" H (with MSR)
* Temperature: 0 to 40 degrees Celsius, operating
* Humidity: 10% to 95%, non-condensing
* Material: Die-cast aluminum
