Jet 354401 j-2530 15" bench model drill press 3/4HP, 11

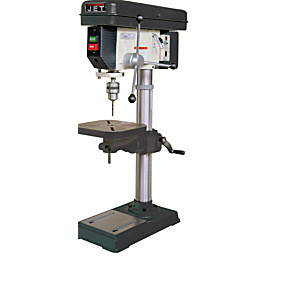

Jet 354401 J-2530 15" BENCH MODEL DRILL PRESS 3/4HP, 115V
* Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings in an enclosed quill for longer life.
* Hinged metal belt and pulley cover
* Accurate depth stop displays inch/mm and has a quick set bolt fast
* 5/8" Drill chuck and arbor
Range of Spindle Speeds (RPM) 200,290,350,430,500,580,640,720,800,870,1440,1630,1820,2380,2540,3630
Base Dimensions (LxWxH/ in.) 11 X 18-1/2
Drilling Capacity Cast Iron (in.) 5/8
Drilling Capacity Mild Steel (in.) 1/2
Distance Base to Spindle (in.) 24-1/2
Distance Column to Spindle (in.) 7-1/2
Drills to Center of Circle (in) 15
Spindle Distance to Base (in.) 24-1/2
Web Description J-2530 15" BENCH MODEL DRILL PRESS 3/4HP, 115V
Overall Dimensions 26 X 13-3/8 X 39
