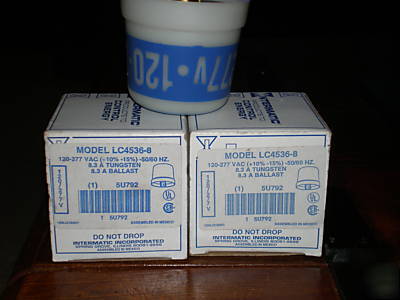

Intermatic LC4536 locking thermal photocontrol
Intermatic LC4536 Locking Thermal Photocontrol
Designed for outdoor use, these commercial grade photocontrols (except Intermatic LC2000) feature a built-in delay to prevent false cycling due to car headlights, lightning, etc. UL Listed and CSA Certified (except Intermatic K4141).
Plug-in thermal-type mount meets EEI-NEMA standards for locking devices with solid brass terminals.Provides reliable control for street lights and other applications that require this type of NEMA connection. Integral housing and UV-stabilized lens protect photocell from moisture and sun rays.
Locking Thermal Photocontrol, Voltage Rating 120 To 277 Volts, Maximum Power 1000/2300 Watts, Maximum Ballast Current 8.3 Amps, Maximum Incandescent Current 8.3 Amps, Maximum Temperature 158 Degrees Fahrenheit, Minimum Temperature -40 Degrees Fahrenheit, Temperature Range -40 to 158 Degrees Fahrenheit, Foot Candles Off 3 to 15, Foot Candles On 1 to 5, Length 2 3/4 Inches, Depth 3 Inches, Width 3 Inches, 50/60 hz, Twist Lock
