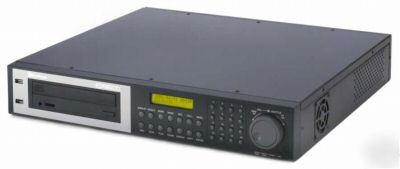

Everfocus EDVR9D1-750 digital video recorder dvr 750GB
Manufacturer: Everfocus Model/Part #: EDVR9D1-750
Everfocus EDVR Series Digital Video Recorders:
Although more than one model number is detailed below, only one is included within this listing. The additional model numbers are included for your comparison purposes only. Be certain you know which model you are interested in before making your purchase. If you have any questions, please contact us at the e-mail address below.
General EDVR Specifications:
Display Format: Full screen, Quad screen, 9 and 16 screen, and PIP
Video Inputs: 4, 9 or 16 Camera Inputs, 1 Vp-p/75 Ohm
Video Output: 4, 9 or 16 Loop-through Video Output, 1 Vp-p at 75 Ohm, 1 BNC Composite Video Output, 1 Vp-p/75 Ohm, 1 Call BNC Composite Output, 1 Vp-p/75 Ohm, 1 VGA Monitor Output
Display Resolution: 720 x 480 for NTSC, 720 x 576 for PAL
Alarm Input: 4 Alarm Inputs, Normally Open or Normally Closed Programmable
Alarm Output: 1 set of Alarm Output
Audio: 4 3.5 mm Mono Inputs; 1 3.5 mm Mono Output
Playback Modes: Play, Pause, Stop, F.Fwd, F.Bwd, S.Fwd, S.Bwd
Hard Disk Storage: 2 internal 3.5" IDE Hard Drives
Recording Mode: Continuous, Schedule Timer, or Alarm and Motion Event Recording
Recording Rate: Up to 120 IPS (NTSC)
Playback Search: By Date/Time or Event (Motion/Alarm/VLoss)
Motion Detection: Yes, with configurable grids per Camera and Adjustable Sensitivity
User Input Device: Front Key Panel, Jog Wheel, USB Mouse (optional) or Remote Control (optional)
Title: 12 Character Title Generator For Each Camera
Ethernet: RJ45 network connector
Password Protection: For Menu and Recording
Archive: Internal DVD+RW Drive and USB Interface Device
Operating Temperature: 0 C ~ +40 C (32 F ~ 104 F)
Dimensions: Approx. 430 (L) mm x 402.5 (W) mm x 72 (H) mm / 17 (L) x 15.8 (W) x 2.8 (H) inches
* 4 color or b/w loop-through camera inputs
* Full screen and quad screen display for monitoring and playback
* Intelligent motion detection with programmable area and sensitivity for each camera
* Real time recording (up to 120/100 images per second)
* Real time playback (up to 60/50 IPS)
* ISDN and / or LAN module optional
* 4 audio inputs, 1 audio output
* Synchronized video and audio
* System auto recovery after power failure (Watchdog function and self diagnostic technology)
* Stable and reliable LINUX-based operating system
* Watermark and time/date stamp in exported images
* 9 color or b/w loop-through camera inputs
* Full screen up to 9 multiscreen display for monitoring and playback
* 16 color or b/w loop-through camera inputs
* Full screen up to 16 multiscreen display for monitoring and playback
Model Numbers (4-camera models):
Model Numbers (9-camera models):
Model Numbers (16-camera models):
example .-500 includes 500GB internal hard disk storage
The EDVR series of DVR s from Everfocus provides a value priced line with some heavy-hitter features like a built-in DVD-RW for archiving video events and real-time recording of up to 120ips. These models are well designed and have easy-to-use front panels and built-in software for controlling the DVR from your browser no special software needed. If you are looking for a 4, 9 or 16 camera DVR loaded with usable features and at a rock bottom price, the EDVR Series from Everfocus should be considered . For some other comparable brands, check out the Nuvico and Dedicated Micros lines previously reviewed .
