80ML lab high speed vibrating ball mill

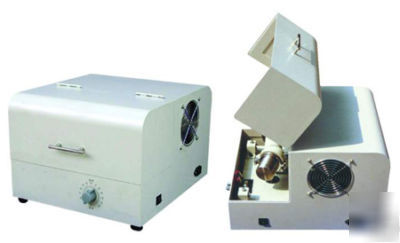

80ml Lab High Speed Vibrating Ball Mill
High speed vibrating ball mill is a small-sized instrument used for making samples slightly with rotary oscillation and 3-D vibration in a laboratory. With a higher hit energy than other ball mills, it combines small volume, light weight, high efficiency, with competitive pricing, applicable for material milling and mixing.
It can employee dry or wet method to ball mill materials or mix all kinds of solids, suspended liquids and pastes with different sizes and materials.
Thanks to an eccentric pendulum shaft installed on the ball mill, the tank can swing eccentrically when the motor runs at a high speed to make the bracket vibrate up and down to fulfill the milling with the help of high-speed oscillation and 3-D vibration, which increases the speed and efficiency of milling greatly.
Maximum feeding capacity: 1/3 of the capacity of the ball milling tank
Discharging granularity: 0.1 m minimum
Oscillation frequency: 1,200 rounds/min
Current input: Single-phase 220V 50Hz
Overall dimensions: 405 365 260 (mm)
Materials of ball milling tanks: Stainless steel (1Cr18Ni9Ti), agate, ceramic, nylon, Teflon
Spec. of vacuum milling tanks:,80ml
Size of milling balls: 6, 10
