50 amp plasma cutter 180A tig stick arc welder 160A

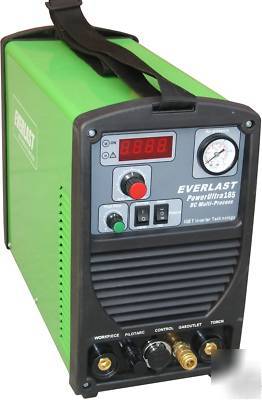

3 in 1 IGBT Inverter Welder with Pilot Arc Plasma Cutter
Dual voltage /Tig 180a / Stick 160a /Cutter 50a
Portable (DC) Multi Purpose Welder with 50-amp Plasma Cutter
Robust Infineon (By Siemens) IGBT Power Drive Matrix
with PILOT ARC Plasma Cutter
208/220vac 50/60HZ Input Single Phase 1PH
110/120vac 50/60HZ Input Single Phase 1PH
230V No Load Voltage, 100-115V Working Voltage
3" Per minute @ 1" Steel (Severance Cut)
7" Per minute @ 3/4" Thick Steel
17" Per minute @ 1/2" Quality Cut
* 50 Amps Plasma cutter: Duty Cycle 60% at 50 Amps and 100% at 40 Amps. 3/4 inches clean cut with 7.2 inches per minutes; 1.0inches severance cut with 3.1 inches per minute. Rated Output Current is 40Amps under both AC 110V and 220V. Works in both 50 and 60 Hz with operating air pressure as 65 psi @ 3 cfm.
* 160 Amps Tig Welder: Duty Cycle 60% at 160 Amps
* ARC and 100% at 95 Amps ARC. Gas Flow: 2-5 L/Minute. It can weld all stainless steel. 150 Amps Arc Welder: Duty Cycle 60% at 150 Amps and 100% at 90 Amps.
* DC welders do not weld aluminum.
High Frequency and Contact Start:
High Frequency DC Plasma cuts thicker materials than standard DC plasma cutters. This 40amp Inverter Plasma cutter cuts like a 60amp standard DC plasma cutter!!! High Frequency Plasma cuts faster with less distortion in your metal.
Internal High Speed Cooling Fan to Regulate Temperature. Unit has built in Thermal and Overload Protection
Weight: 40Lbs(44LBS Boxed)
Dimensions: 480 mm Length x 210 mm width x 310mm
* Air Regulator with Bracket
* Please add 8.5% TAX to all CA sales
