12VOLT 30AMP car rocker switch round hole fit + red led

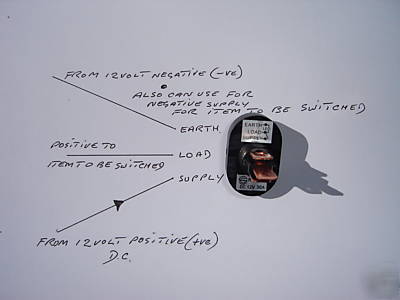

A SPST latching rocker switch with a Red Led
which lights when switch is in the On position.
Contact rating 12Volts @ 30Amps DC
Panel cut-out is a circle ( no square holes to cut )12.2mm in diameter
6.3mm / 1/4inch connection terminals
The "body" of the switch has a 10mm height from the panel it is mounted on, the moveable rocker has 7mm maximum height
Behind the panel mounting surface a 30mm space is required
Ideal for use in Autos, Boats and Caravans
For 1st Class Post & Packing in U.K. 1.50 for 1 then + FREE for each addition
When a postage cost is agreed I will invoice you that amount please do not pay until I have invoiced you
Delivery can take 1-7 working days in the U.K, however they can take up to 10.
