(10) mp-04-02 | 1/8" npt x 1/4" hydraulic hose fittings

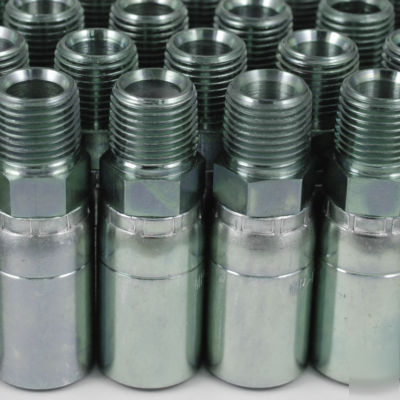

Lot of ten (10) hydraulic hose fittings!

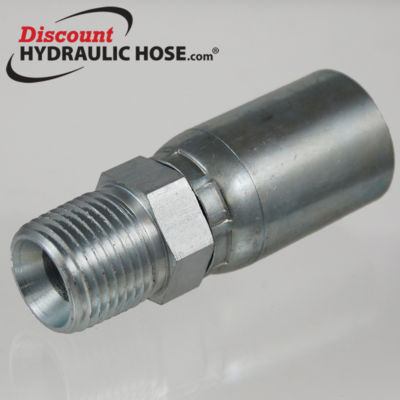

MP-04-02 | 1/4" Hose x 1/8" NPTF* Male Pipe Rigid
Interchanges with Weatherhead 04U-102
You are purchasing a lot of ten (10) hydraulic hose crimp fittings. Carbon steel construction with clear trivalent plating. Discount Hydraulic Hose.com Braided Hose Fittings are designed for use with most 1-wire and 2-wire hydraulic hoses, including:
* Discount Hydraulic Hose.com: R1, R2, R3, R16, R17, KT, HJK
* Weatherhead: H017, H039, H104, H105, H114, H115, H145, H146, H245, H300, H324, H350, H425, H545
* Gates: C3, G1, G2, M2T, M3K
* Parker: 301, 301LT, 381, 421, 421HT, 431, 436, 451, 601
(Discount Hydraulic Hose.com Braided Hose Fittings are not compatible with Parker Kwik-Krimp non-adjustable hose crimpers)
* Aeroquip: 2583, FC211, FC212, FC639
* Hoses that meet SAE 100R2AT, SAE 100R1AT, SAE 100R3, SAE 100R16 or SAE 100R17 specifications.
1/4" JIC female (7/16-20 thread)
3/8" JIC female (9/16-18 thread)
1/2" JIC female (3/4-16 thread)
5/8" JIC female (7/8-14 thread)
3/4" JIC female (1 1/16-14 thread)
1" JIC female (1 3/8-12 thread)
Braid Hose Fittings must be crimped according to Discount Hydraulic Hose.com crimp specifications, available here. Discount Hydraulic Hose.com Braided Hose Fittings are also compatible with Weatherhead Coll-O-Crimp hose crimpers, and most adjustable hose crimpers (including models from from Dayco, Aeroquip andGates). These fittings are not compatible with Parker Kwik-Krimp non-adjustable hose crimpers.
* NPTF (National Pipe Tapered Fuel) is also known as Dryseal American National Standard Taper Pipe Thread (ANSI B1.20.3). NPTF is dimensionally compatible with NPT, but NPTF fittings are designed to seal without the need for thread sealant.
