EMI TCR 7.5S200-2-D-OV DC POWER SUPPLY 0-7.5V 0-200A
SearchBy8 - 10070 | Location: DG1 | By: Robert | Tester: ROY | Quan: 2 | List: 1 | Duplicate? False | Plan: D
Standard Relist: True | Size: 22x24x10 Weight: 110 | MGR: Octavio | Start: $0.00 | BIN: $529.94 | Type: Fixed Price

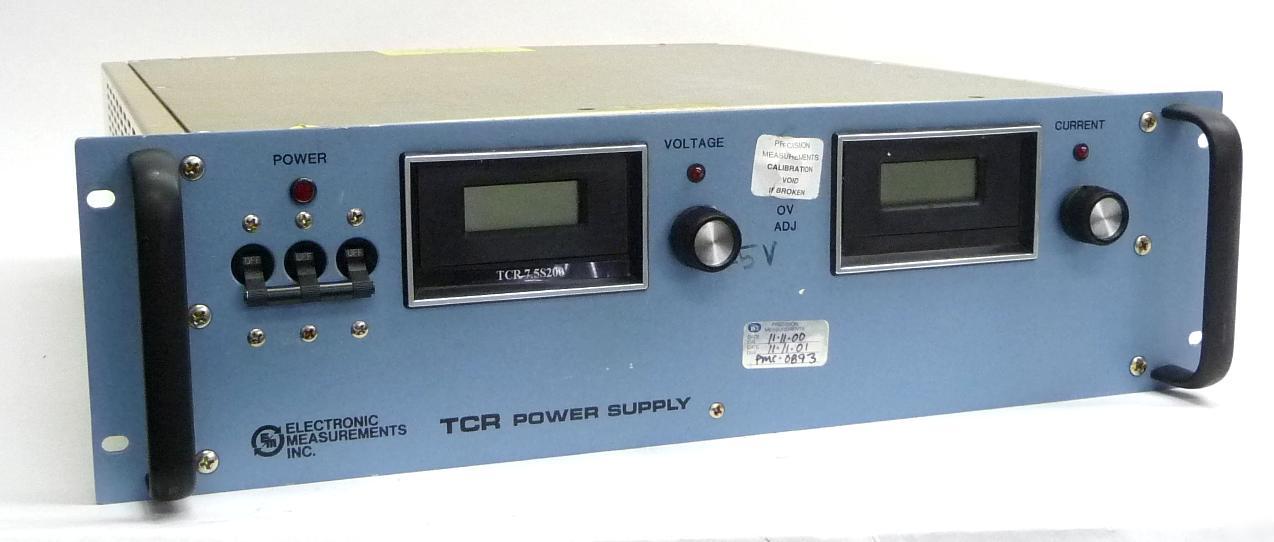

* EMI TCR 7.5S200 DC POWER SUPPLY (M/N: TCR 7.5S200-2-D-OV) - w/250V 30A Plug
Unless stated otherwise, accessories such as Power Cords, Software, AC Adapters, and/or other Cables are not included.
Testing & Functional Notes:
This item was pulled from a working environment. It is fully functional, in good condition, and is Guaranteed Working!
Additional Specifications: http:// /search/asp.cfm/DCPWR/EMI/TCR%207.5S200.html
The TCR series is a very robust design of SCR phase controlled regulated power supply.
In an SCR phase-controlled DC Power Supply, output is controlled by modulating the conduction angle of the controlled SCRs. In the TCR Series, input AC is applied to three pair of bi-directionally connected SCRs placed within the delta connected primary of the main power transformer. The Secondary voltage of this transformer is rectified and double L/C filtered to provide a low ripple DC output.
Both output voltage and current are sensed and compared against internal references or externally applied control levels so the supply provides either constant voltage or constant current regulation with automatic crossover depending on control level. Additional circuitry provides bias levels, circuit protection and metering functions.
and find a warranty for this item!
Dimensions: 22x24x10 inches - Weight: 110 pounds.
